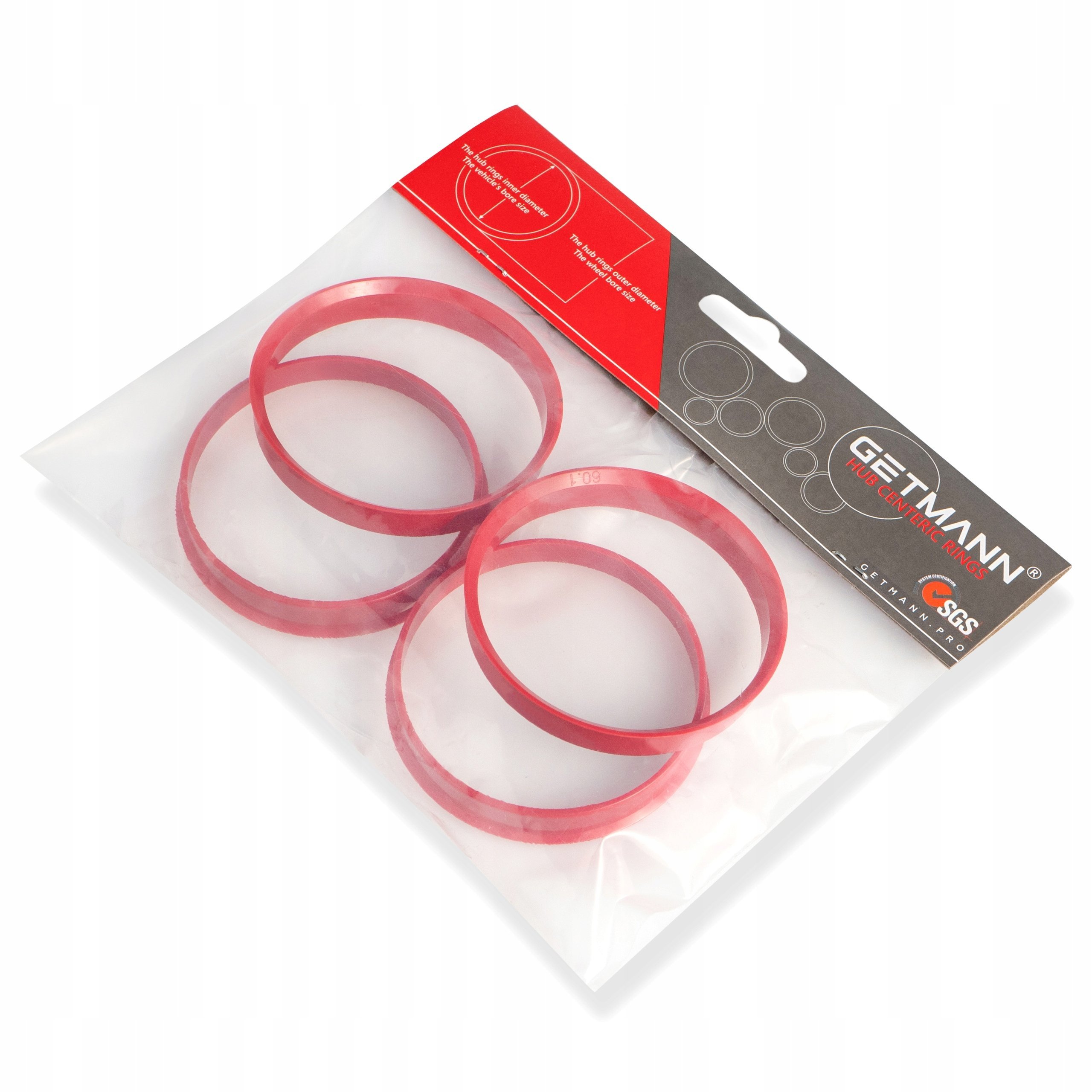

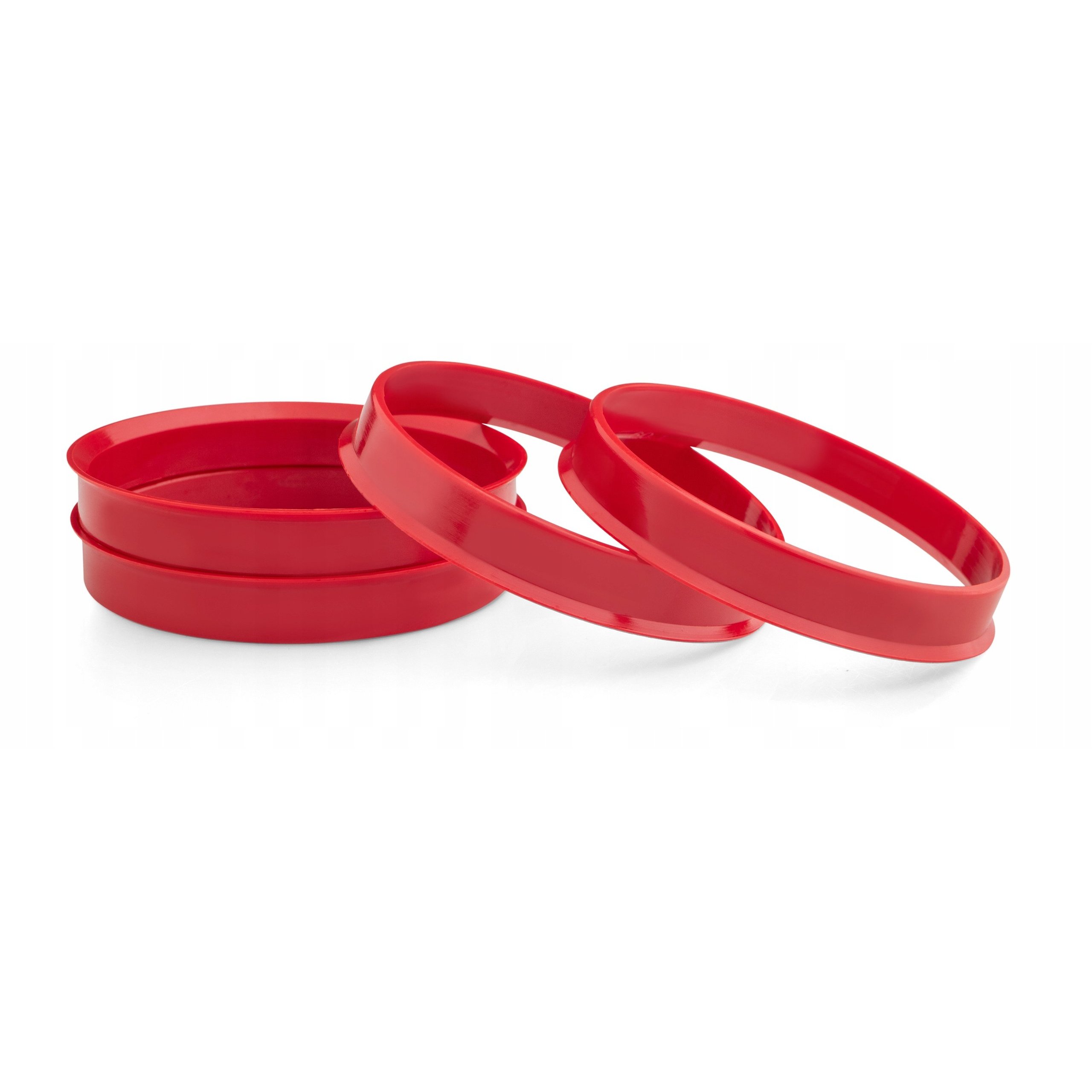

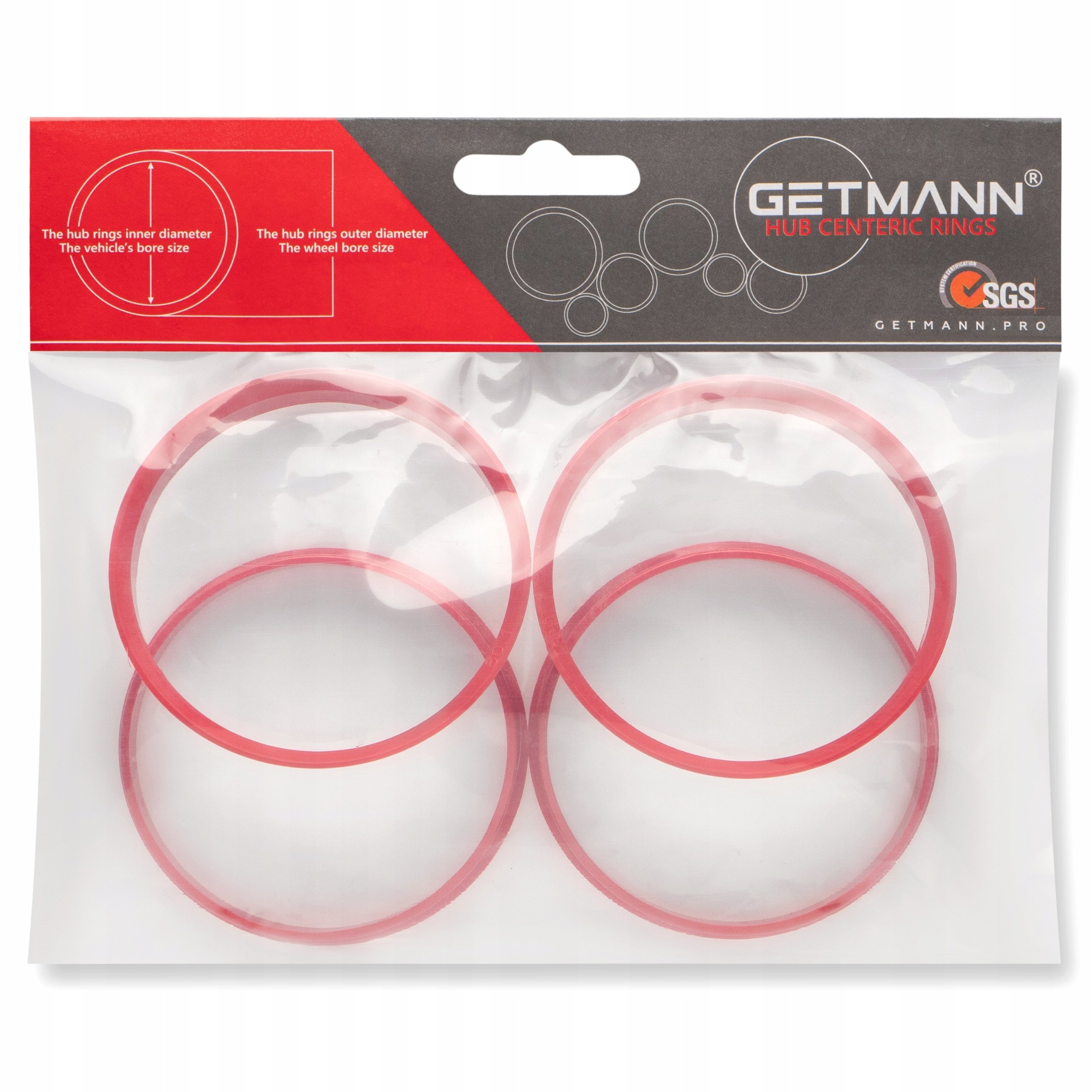

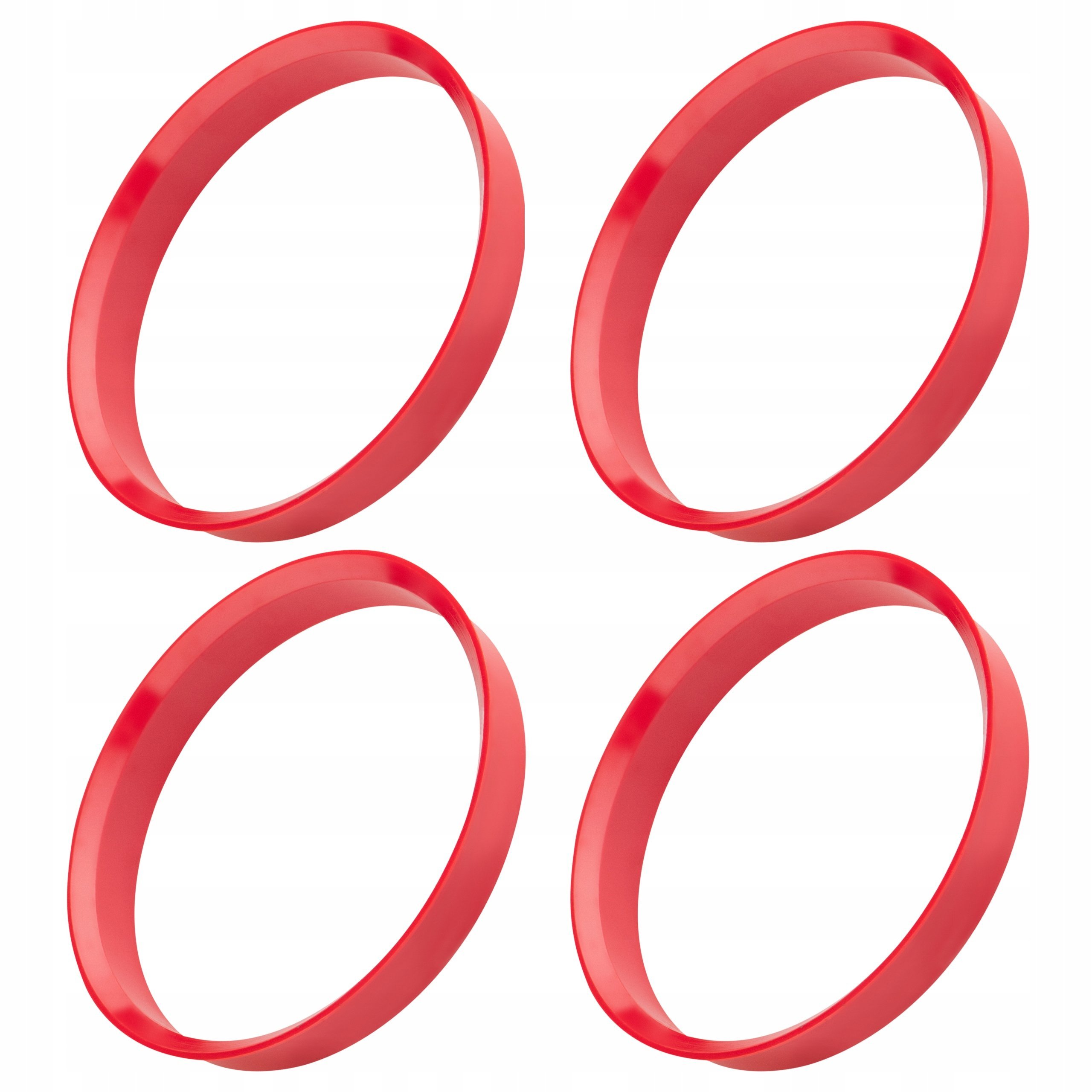

Hub centring rings GETMANN 76.1 x 72.6 GR4-761.726.6144 buy in the online store ADAPTEX-SHOP.EU
Suitable for:
BMW ▾
1 Series (E81, E82, E87, E88, F20, F21), 2 Series (F22, F33), 3 Series (E36, E46, E90, E91, E92, E93, F30, F31, F34) , 4 Series (F32, F33, F36), 5 Series (E12, E28, E34, E60, E61, F10, F11, F07), 6 Series (E24, E63, E64, F12, F13, F14), 7 Series (E23, E32, E38, E65, F01), 8 Series (E31), X1 (E84), X3 (E83), X3 (F25), X4 (F26), X5 (E53), Z3 (E36), Z4 (E84, E85, E89), Z8 (E52)
LAND ROVER ▾
Discovery (2005-2016), Range Rover (2002-2022)
MINI ▾
Countryman (2010-2016), Paceman (2012-2016)
Characteristics
Quantity in set: 4 pcs.
Dimensions:
- 1 – Outer diameter (mm): Ø 76.1
- 2 – Inner diameter (mm): Ø 72.6
- L – Ring height (mm): 10
- Material: thermoplastic
Depending on the delivery, the rings may vary in colour.
Centring rings are necessary when mounting rims whose centre hole does not match the vehicle hub.
The main purpose of centring rings is to eliminate the empty space between the centring hole of the wheel rim and the hub. Failure to remove this space may result in wheel vibration and steering wheel vibration, which causes increased wear on the steering system and suspension components of the car. These problems most often occur at speeds of 90-120 km/h.
How to choose the size of the rings?
To correctly select centring rings yourself, you need to check two parameters:
1 – The diameter of the central hole of the rim (which will correspond to the outer diameter of the ring)
2 – The diameter of the hub (which will correspond to the inner diameter of the ring)
The diameter of the rim's centre hole can be found in the manufacturer's specifications, and the diameter of the hub in the vehicle documentation.
If you have difficulty finding these parameters, please contact us – we will help you professionally select the appropriate centring rings.
Description
The 76.1 x 72.6 centring rings are made of heat-resistant polycarbonate with precise dimensions.
Centring rings made of heat-resistant polycarbonate will not stick to the hub and are distinguished by their hardness and resistance to cracking even under the most dynamic loads. Thanks to this material and dimensional accuracy, GETMANN centring rings withstand a large number of wheel mounting and dismounting procedures and do not differ in service life from their more expensive metal counterparts.
The precise dimensions of these rings ensure accurate centring on the vehicle wheel hub and prevent wheel runout after replacing standard rims.
- Quantity
- 4 szt.
- Outer Diameter – Rim (mm)
- 76,1
- Inner Diameter – Hub (mm)
- 72,6
- Manufacturer
- Getmann
- Category
- Hub Centering Rings
- Stan
- Nowy
- Typ samochodu
- Samochody osobowe
- Kod producenta
- GR4-761.726.6144
