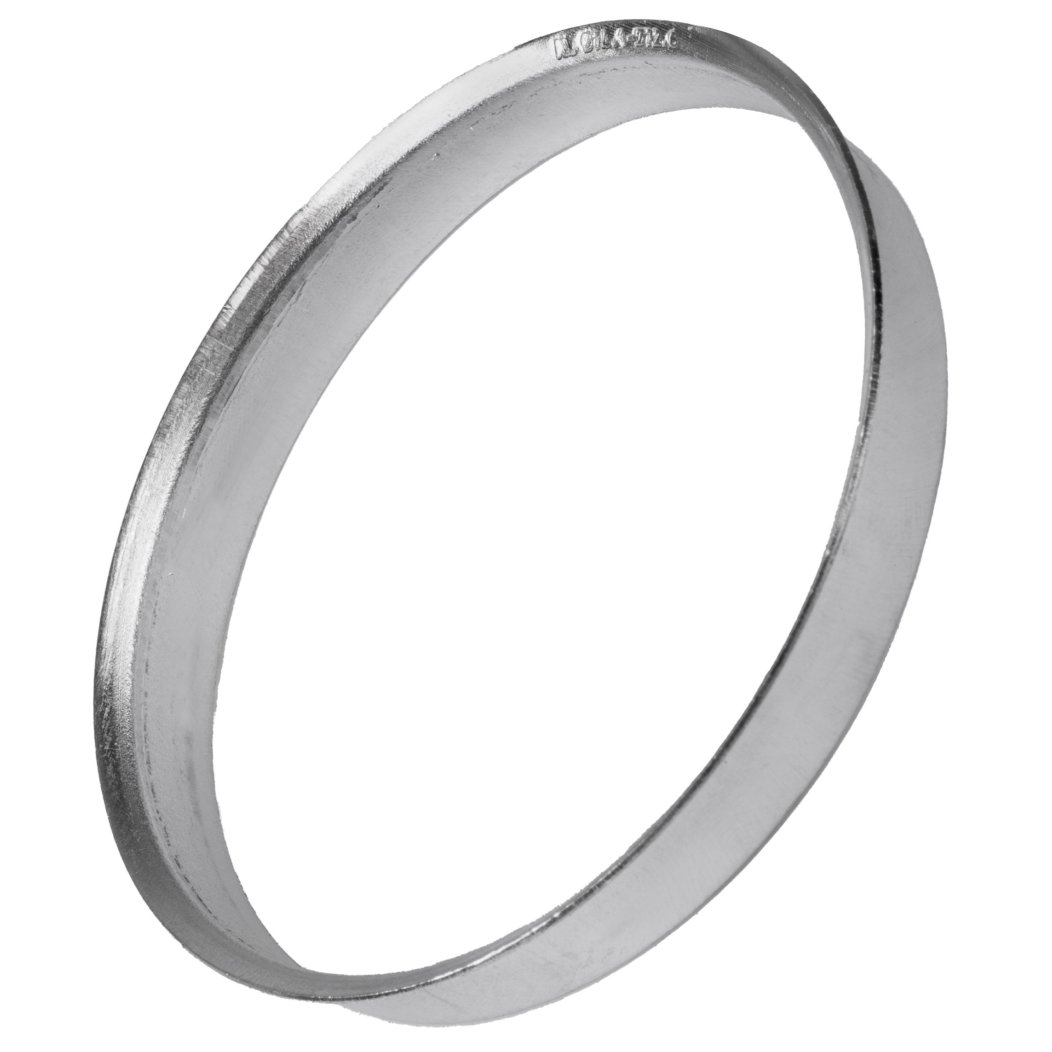

Hub Centric Ring 74.1 x 72.6 for Alloy Wheels B1-AN741-726 buy in the online store ADAPTEX-SHOP.EU
Suitable for:
BMW
1 Series (E81, E82, E87, E88, F20, F21), 2 Series (F22, F33), 3 Series (E36, E46, E90, E91, E92, E93, F30, F31, F34) , 4 Series (F32, F33, F36), 5 Series (E12, E28, E34, E60, E61, F10, F11, F07), 6 Series (E24, E63, E64, F12, F13, F14), 7 Series (E23, E32, E38, E65, F01), 8 Series (E31), X1 (E84), X3 (E83), X3 (F25), X4 (F26), X5 (E53), Z3 (E36), Z4 (E84, E85, E89), Z8 (E52)
Land Rover
Discovery (2005-2016), Range Rover (2002-2022)
Mini
Countryman (2010-2016), Paceman (2012-2016)
Characteristics
Dimensions:
- Outer ring diameter (mm): Ø 74.1
- Inner diameter of the ring (mm): Ø 72.6
- L – Ring height (mm): 11
- K – Flange size (mm): 2
- Material: aluminium
- Country of manufacture: Italy
DESCRIPTION
Centring rings are an essential component in wheel rim installation. They are necessary when installing non-original wheel rims, i.e. those whose centre bore does not match the vehicle's hub.
The main task of centring rings is to eliminate the empty space between the wheel centre bore and the hub. Failure to remove this space may result in wheel vibration and steering wheel vibration, which causes increased wear on the steering system and suspension components of the car. These problems most often occur at speeds of 90-120 km/h.
How to choose the size of the rings?
To correctly select centring rings yourself, you need to check two parameters:
1 – The diameter of the central hole of the rim (which will correspond to the outer diameter of the ring)
2 – The diameter of the hub (which will correspond to the inner diameter of the ring)
The diameter of the rim centre hole can be found in the manufacturer's specifications, and the diameter of the hub in the vehicle documentation. If you have difficulty finding these parameters, please contact us – we will help you professionally select the appropriate centring rings.
The 74.1 x 72.6 centring ring is made of aluminium with precise dimensions. This material does not stick to the hub and is characterised by its hardness and resistance to cracking, even under the most dynamic loads. Its precise dimensions ensure accurate centring on the vehicle wheel hub and prevent vibrations.
- Quantity
- 1 szt.
- Outer Diameter – Rim (mm)
- 74,1
- Inner Diameter – Hub (mm)
- 72,6
- Manufacturer
- Bimecc
- Category
- Hub Centering Rings
- Kod Producenta
- B1-AN741-726
- Stan
- Nowy
- Typ samochodu
- Samochody Osobowe
