Wheel Bolt M14x1.5x28mm AUDI CUPRA SEAT SKODA VOLKSWAGEN VW F1-ZAB54/S BLACK buy in the online store ADAPTEX-SHOP.EU
Suitable for:
Volkswagen
Arteon, Beetle (A4, A5), Bora (A4, A5, A6), Caddy (since 2004), CC, E-Golf, Eos, Cross Golf, Cross Polo, Cross Touran, Cross Up, Golf, Golf GTI, Golf R, Golf Variant (Mk4, Mk5, Mk6, Mk7, Mk8), Jetta GLI, Jetta (A4, A5, A6, A7), Passat, Passat Variant, Passat Alltrack (B5, B6, B7, B8), Polo (Mk4, Mk5, Mk6), T-Cross, T-Roc, Sharan (Mk1, Mk2)
Audi
A1, S1, A2, A2 Avant, S2 Avant, RS2 Avant, A3, A3 Sportback, S3, RS3 – (8L, 8P, 8V, 8Y), A4, A4 Allroad, A4 Avant, S4, RS4 – (B5, B6, B7, B8, B9), A5, A5 Sportback, S5, RS5 – (B5, B6, B7, B8, B9), A6, A6 Avant, A6 Cabrio, S6, RS6 – (C4, C5, C6, C7, C8), A7, S7, RS7 – (4G, 4G7), A8, S8, RS8 – (4E, 4H, D2, D3, D4, D5), Audi TT, TTS, TT RS – (8N, 8J, 8S)
Cupra
Ateca, Leon, Formentor, Born
Seat
Alhambra
Skoda
Fabia, Karoq, Kamiq, Kodiaq, Octavia, Rapid, Roomster, Superb, Scala, Yeti
OEM: WHT 001812, WHT 002437, 431601139 A, 443601139 A, 443601139 C, 8D0601139 A, 8D0601139 D
Characteristics
Quantity in set: 1 piece

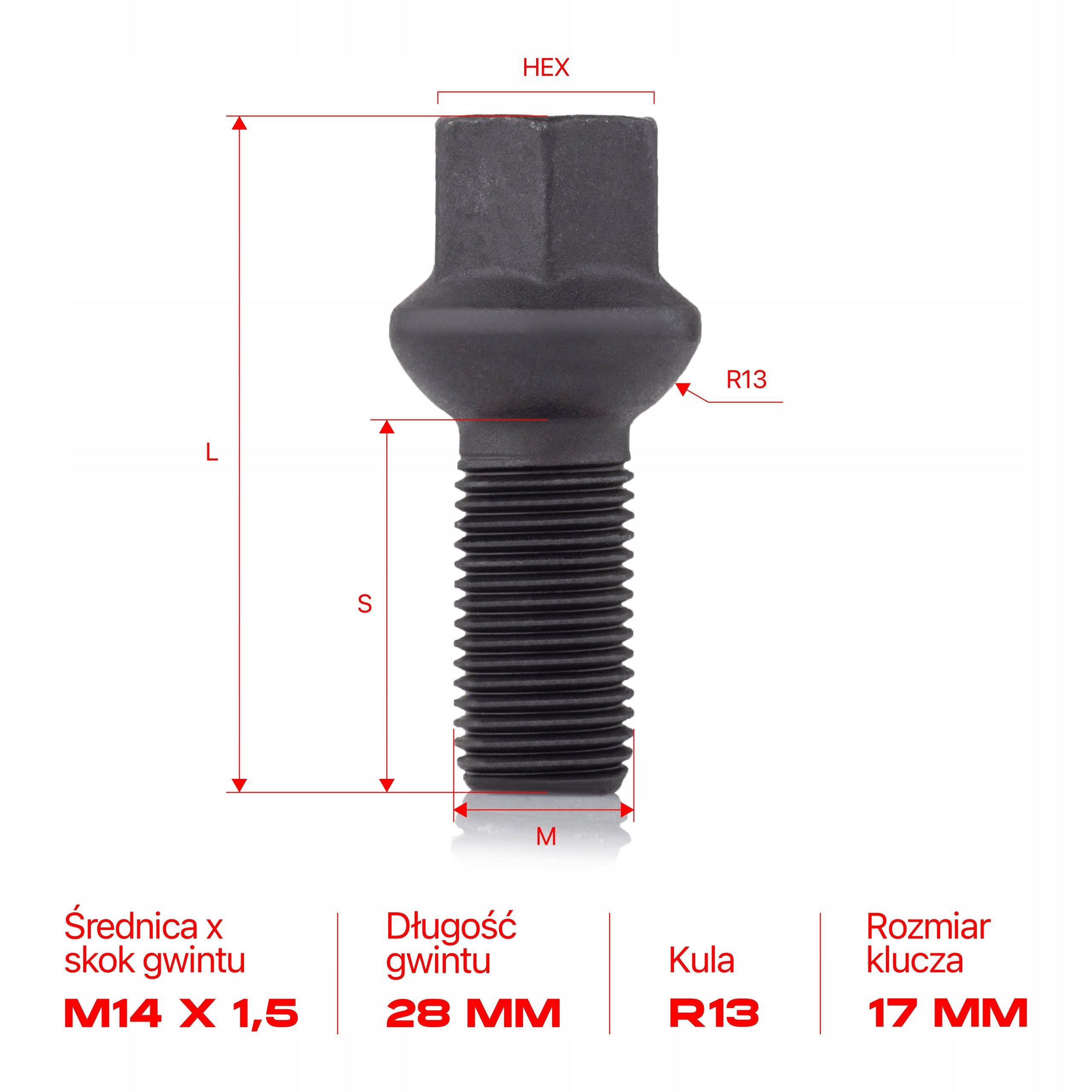

Dimensions:
- L – Bolt length (mm): 51
- S – Thread length (mm): 28
- M – Diameter: M14
- Thread pitch: 1.5
- Mounting surface: R13 ball
- Key size (mm): 17
- Strength class: 10.9
- Coating: zinc plated
- Material: steel
- Colour: black
Country of manufacture: Italy
Note: In order to select the correct bolt length, refer to the working length parameter (S), also known as the thread length. This parameter is always measured from the end of the ball (marked R in the drawing), even if the working part is not threaded all the way to the seat.
Description
The M14x1.5x28mm wheel rim bolt is made of cold-formed steel. All forming stages are carried out using moulds manufactured in-house by Farad. After cold forming, the threads are created by rolling.
Thanks to subsequent heat treatment and a precise hardening process, Farad wheel rim bolts have a strength class of 10.9. After these processes are completed, a thorough quality control of the threads, structure, dimensions and shape is carried out.
IATE 16949:2016, ISO 9001:2015, ISO/TS 16949:2009
Farad bolts are approved by leading global car manufacturers and are available for all types of vehicles. Farad only manufactures certified parts that are used in the factories of well-known car brands during initial assembly. By purchasing this manufacturer's products, you will avoid the negative consequences of using untested wheel fasteners.
Farad wheel fastening accessories are manufactured in Italy in accordance with UNI EN ISO 9001:2015 management standards. Total control over the production line guarantees exceptional attention to detail at all stages of production.
Farad wheel bolts fit both factory and non-standard wheels.
Before purchasing, please ensure that the bolts offered are compatible with your rims and car brand.
- Quantity
- 1 szt.
- Manufacturer
- Farad
- Category
- Wheel Bolts
- Working Length
- 28
- Thread
- M14x1.50
- Seat type
- Kulowa
- Key
- 17
- Application
- Felgi Aluminiowe
- Strength Grade
- 10.9
- Kod Producenta
- F1-ZAB54/S BLACK
- Stan
- Nowy
- Typ samochodu
- Samochody Osobowe
