Wheel Bolt M12x1.25x22mm ABARTH ALFA ROMEO CITROEN FIAT FORD JEEP F1-A1BV2/S buy in the online store ADAPTEX-SHOP.EU

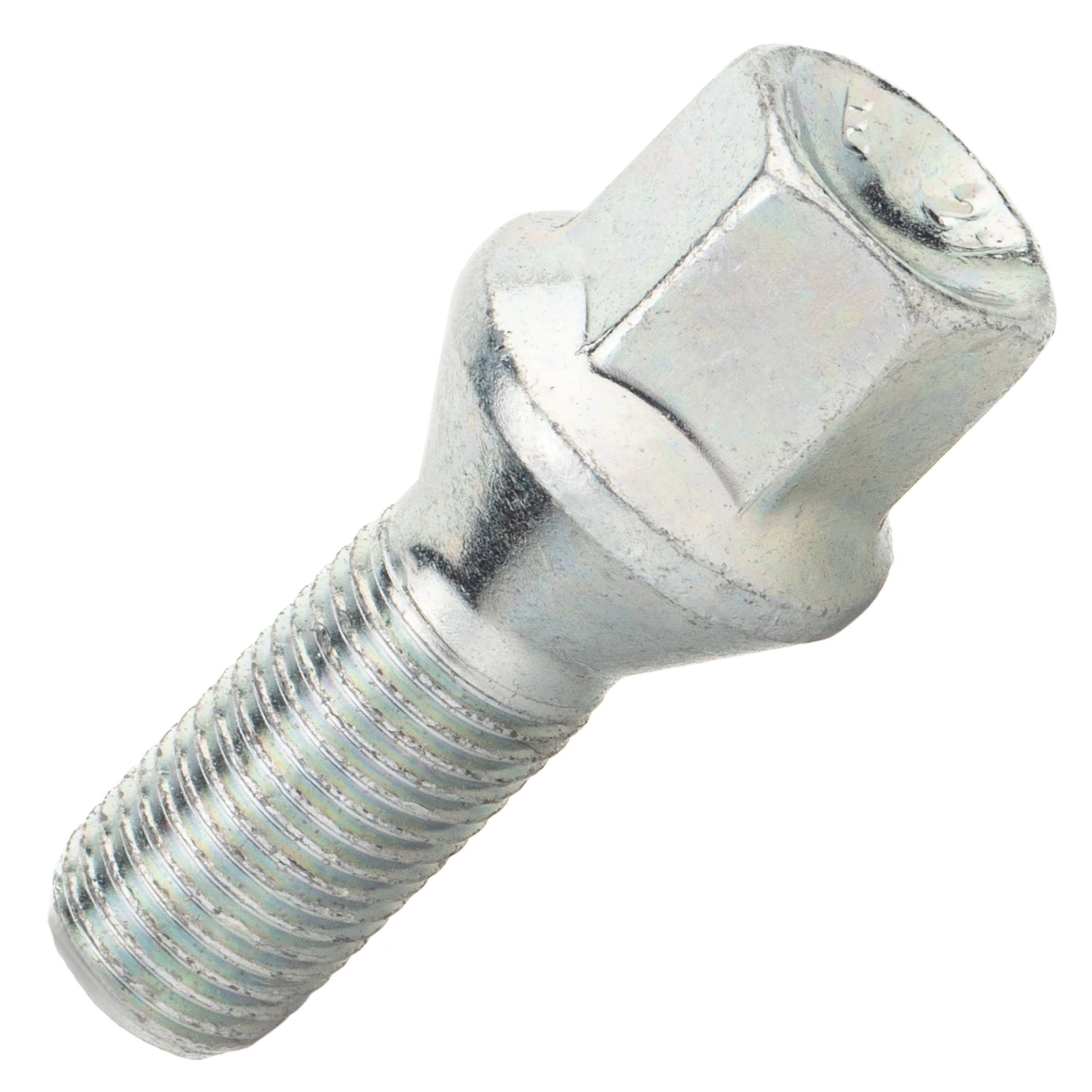

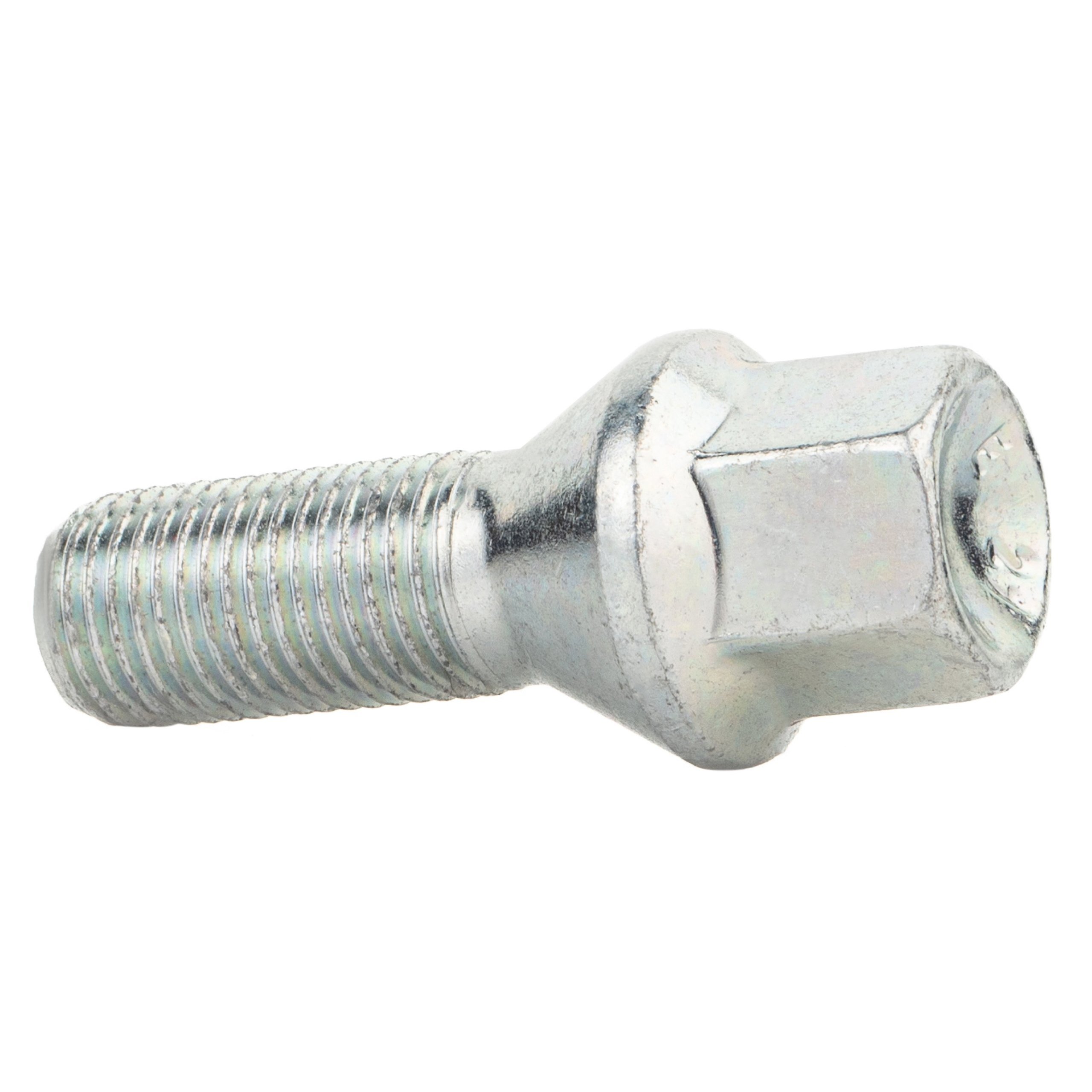

FARAD A1BV2/S M12x1.25x22mm cone screw
Suitable for:
ABARTH
595, 695
ALFA ROMEO
166, 147, 156, GT, GT Coupe, Crosswagon, Mito, Giulietta, C4, C4 Spider, Tonale
CITROËN
Nemo
FIAT
Multipla, Doblo, Stilo, Stilo SW, Bravo, Brava, Punto, Marea, Palio, Idea, Panda, Fiorino, Qubo, Linea, 500, 500L, Tipo, Nuova 500
FORD
Ka (2009 - 2016)
JEEP
Renegade, Compass (since 2020)
LANCIA
Lybra, Thesis, K (since 1999), Y (since 2001), Ypsilon, Musa, Linea, Delta (since 2008)
Characteristics
Quantity in set: 1 piece

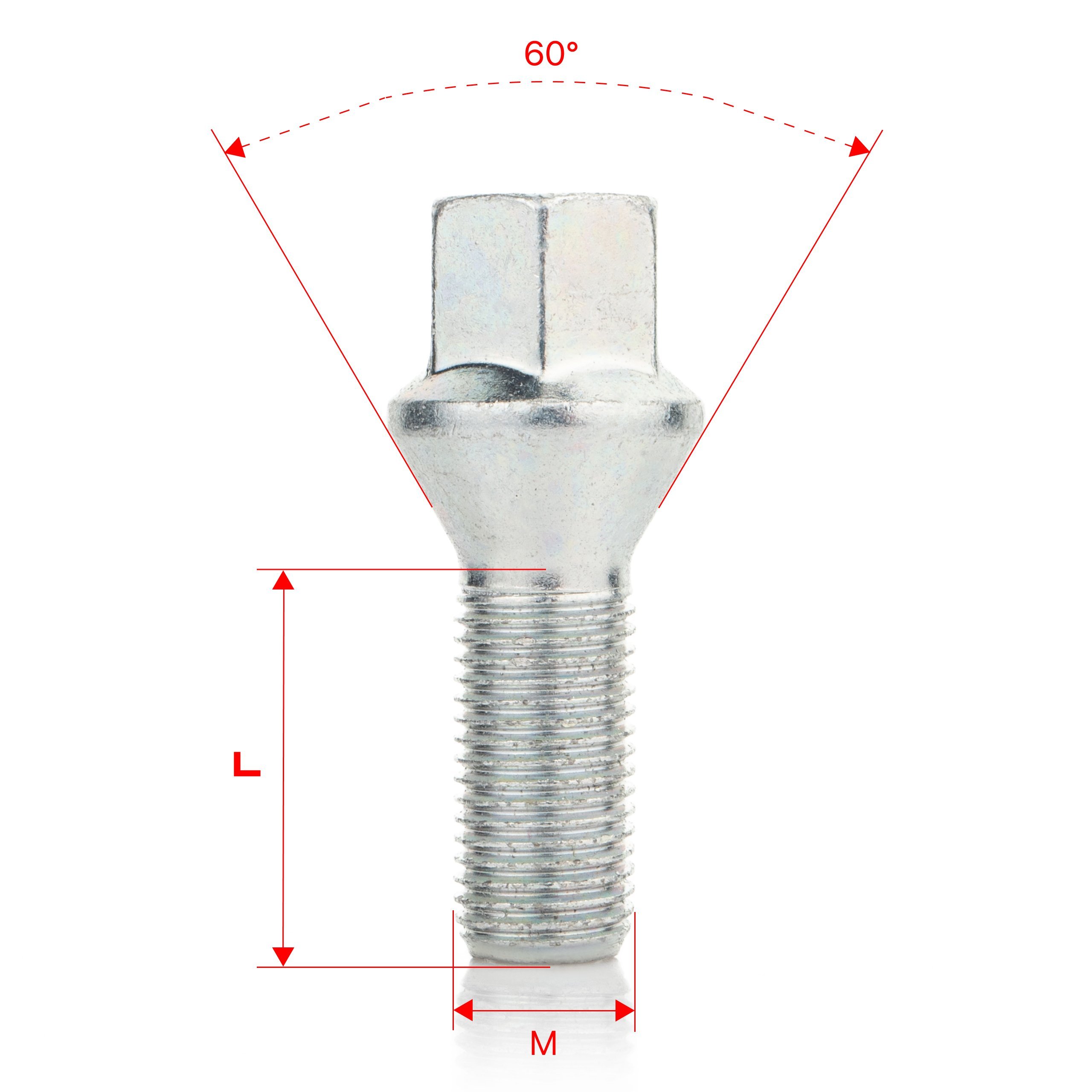

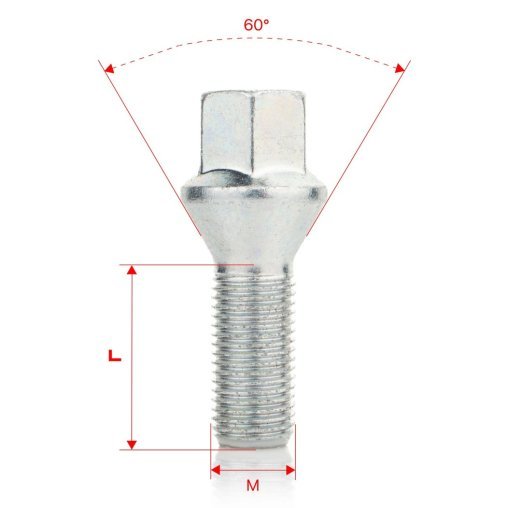

Dimensions
- L – Working length (mm): 22
- M – Diameter: M12
- Thread pitch: 1.25
- Clamping surface: cone
- Key size (mm): 17
- Strength class: 10.9
- Coating: zinc plated
- Material: steel
- Colour: grey
Country of manufacture: Italy
Note: In order to select the correct bolt length, refer to the working length (S) parameter, also known as the thread length. This parameter is always measured from the end of the cone, even if the working part is not threaded all the way to the seat.
Description
M12x1.25x22mm wheel rim bolts are made of cold-formed steel. All forming stages are carried out using moulds manufactured in-house by Farad. After cold forming, the threads are created by rolling.
Thanks to subsequent heat treatment and a precise hardening process, Farad wheel rim bolts have a strength class of 10.9. After these processes are completed, a thorough quality control of the threads, structure, dimensions and shape is carried out.
IATE 16949:2016, ISO 9001:2015, ISO/TS 16949:2009
Farad bolts are approved by leading global car manufacturers and are available for all types of vehicles. Farad only manufactures certified parts that are used in the factories of well-known car brands during initial assembly. By purchasing this manufacturer's products, you will avoid the negative consequences of using untested wheel fasteners.
Farad wheel fastening accessories are manufactured in Italy in accordance with UNI EN ISO 9001:2015 management standards. Total control over the production line guarantees exceptional attention to detail at all stages of production.
Farad wheel bolts fit both factory and non-standard wheels.
Before purchasing, please ensure that the bolts offered are compatible with your rims and car brand.
- Quantity
- 1 szt.
- Manufacturer
- Farad
- Category
- Wheel Bolts
- Working Length
- 22
- Thread
- M12x1.25
- Seat type
- Stożkowa
- Key
- 17
- Application
- Felgi Aluminiowe | Felgi Stalowe
- Strength Grade
- 10.9
- Kod Producenta
- F1-A1BV2/S
- Stan
- Nowy
- Typ samochodu
- Samochody Osobowe
