Wheel Bolt M14x1.25x28mm BMW MINI G1-077110[C17F28](ZN) buy in the online store ADAPTEX-SHOP.EU
Fits original rims:
BMW
1 Series (F20, F21, F52, F40), 2 Series (F22, F23, F44, F87, G42), Gran Tourer (F46), Active Tourer (F45, U06), 3 Series (F30, F31, F34, F80, G20, G21, G80), 4 Series (F32, F33, F36, F82, F83, G22, G23, G26, G82, G83), 5 Series (F10, F11, F07, F90, G30, G31), 6 Series (F06, F12, F13), 7 Series (F01, F02, F03, F04, G11, G12), 8 Series (G14, G15, G16, F91, F92, F93), X1 (F48, F49), X2 (F39), X3 (F25, G01, F97), X4 (F26, G02, F98), X5 (E70 Rest, F15, G05, F85, F95), X6 (E71, F16, G06, F86, F96), X7 (G07), Z4 (G29), and Series (i3, i4, iX, iX3, i8)
Mini
Cabrio (From 2009), Clubman (R55, F54), Convertible (R57, F57), Cooper (R56, F55), Countryman (R60, F60), Clubman, Paceman, One (R56, F56, F55)
Characteristics
Quantity in set: 1 pc.

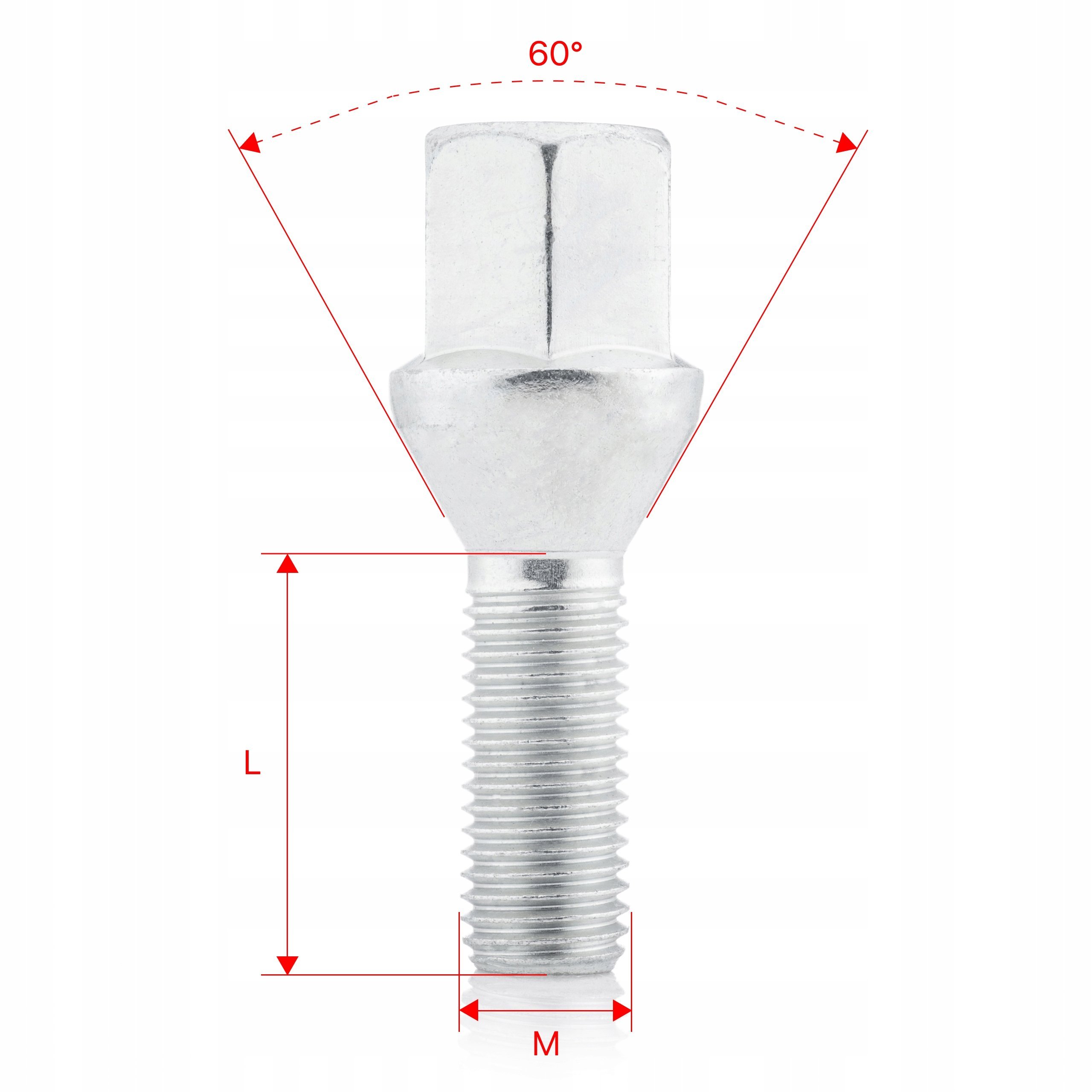

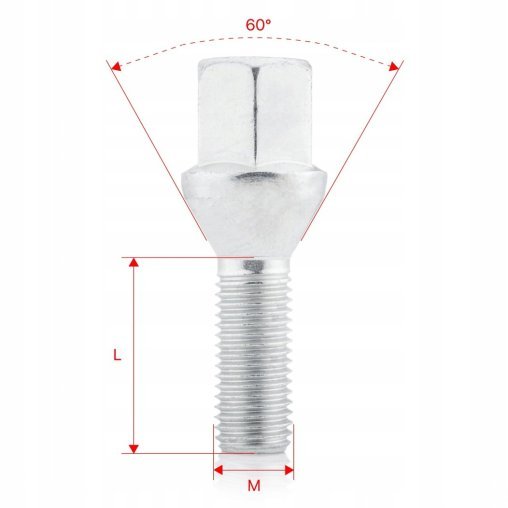

Dimensions:
- L – Thread length (mm): 28
- M – Diameter: M14
- Thread pitch: 1.25
- Mounting surface: cone
- Key size (mm): 17
- Strength class: 10.9
- Coating: zinc plated
- Material: steel
Note: In order to select the correct bolt length, refer to the working length (L) parameter, also known as the thread length. This parameter is always measured from the end of the mounting surface, even if the working part is not threaded all the way to the seat.
Description

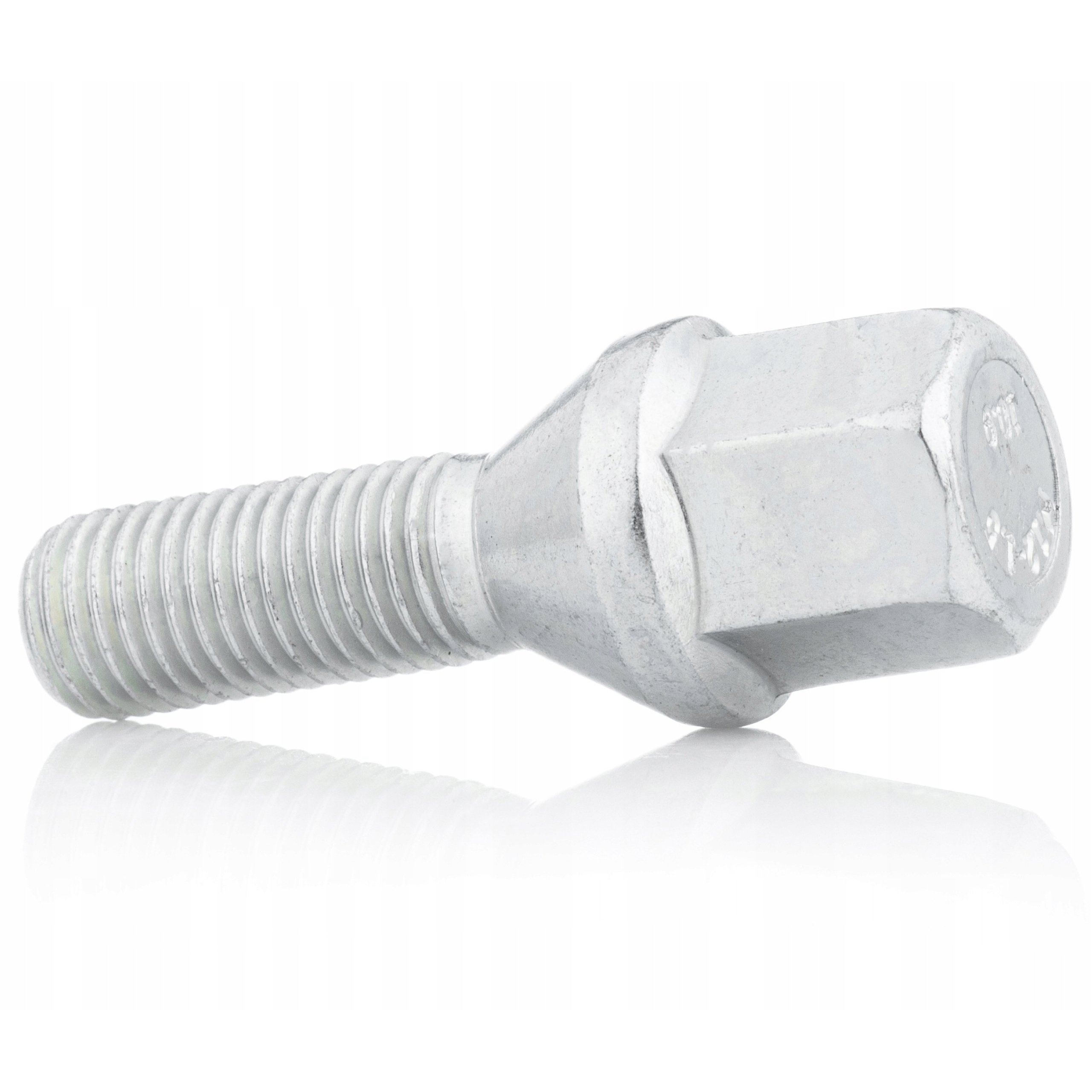

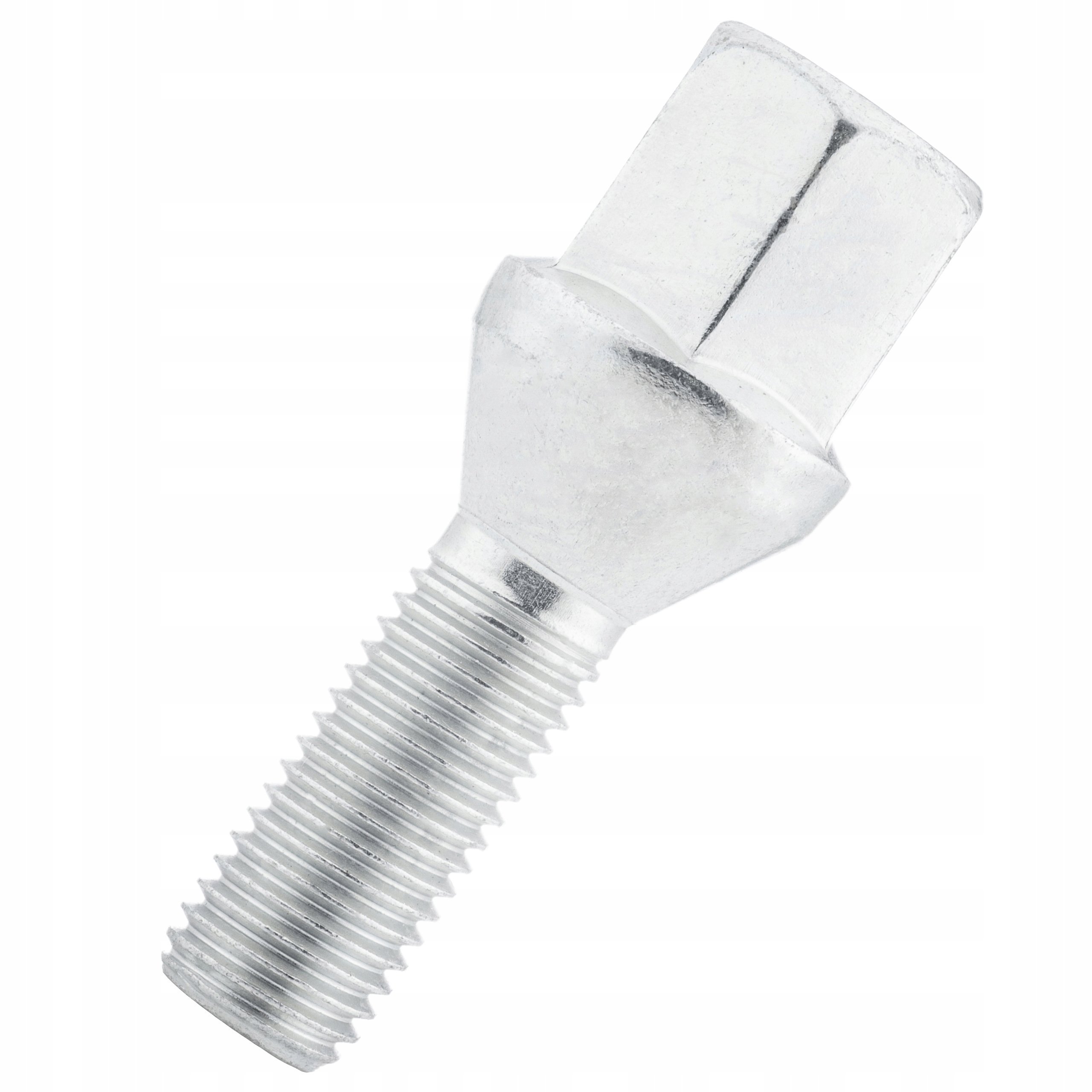

The M14x1.25x28mm wheel bolt is made of high-quality cold-formed steel, which is specially heat-treated and hardened to achieve a strength class of 10.9.
The bolt undergoes a thread forming process by rolling and receives a protective zinc coating – passivation, which protects against corrosion and creates a protective layer.
Each bolt undergoes quality control, which ensures high manufacturing precision and guarantees the reliability of the threaded connection. A bolt with a strength class of 10.9 has excellent mechanical and physical properties, ensuring high tensile strength and deformation resistance.
This wheel bolt is compatible with standard and non-standard rims, but before purchasing, make sure that the selected bolts fit your rims and car brand. The product description indicates that it is intended for use on cars with standard rims.
- Quantity
- 1 szt.
- Manufacturer
- GETMANN
- Category
- Wheel Bolts
- Working Length
- 28
- Thread
- M14x1.25
- Seat type
- Stożkowa
- Key
- 17
- Application
- Felgi Aluminiowe
- Strength Grade
- 10.9
- Kod Producenta
- G1-077110[C17F28](ZN)
- Stan
- Nowy
- Typ samochodu
- Samochody Osobowe
