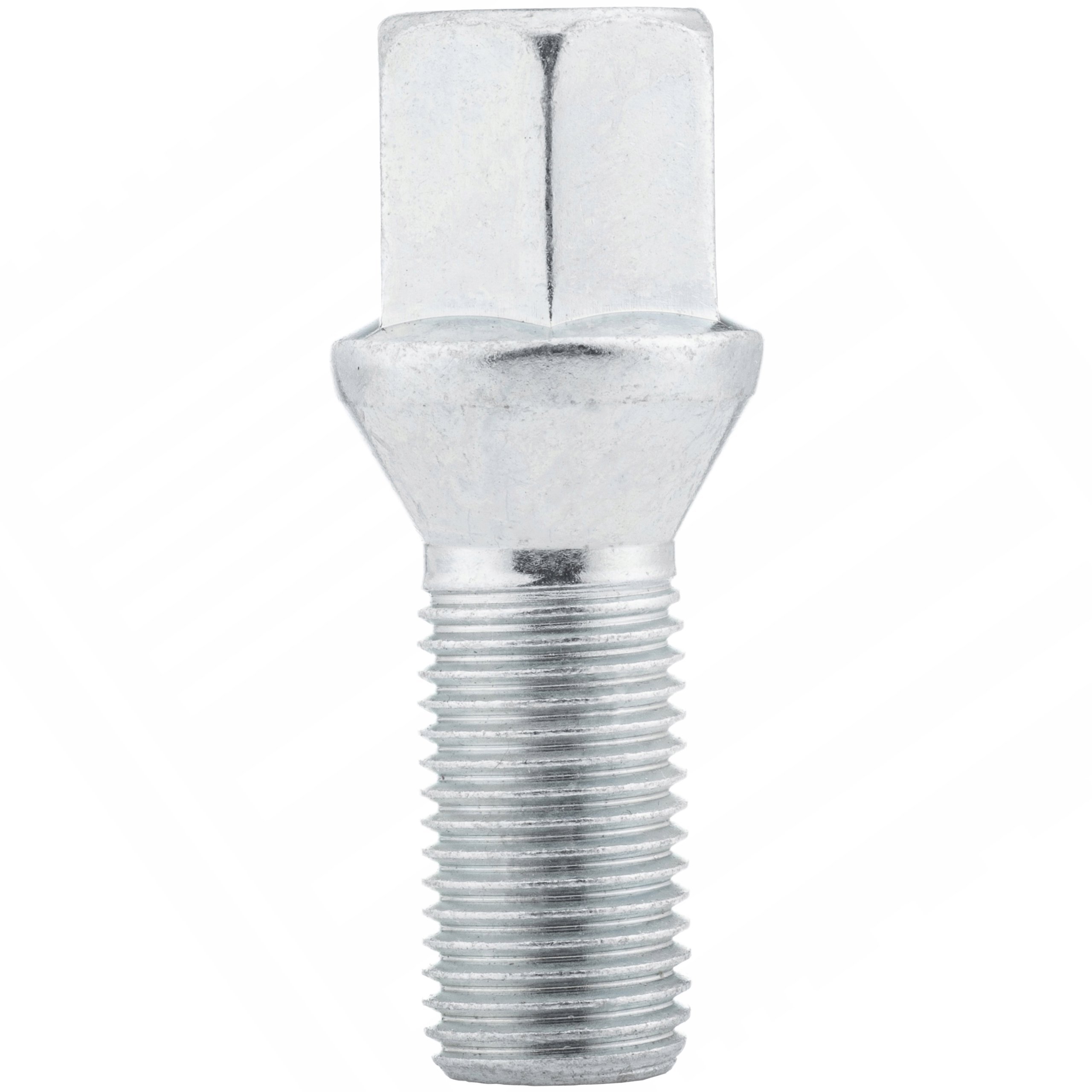

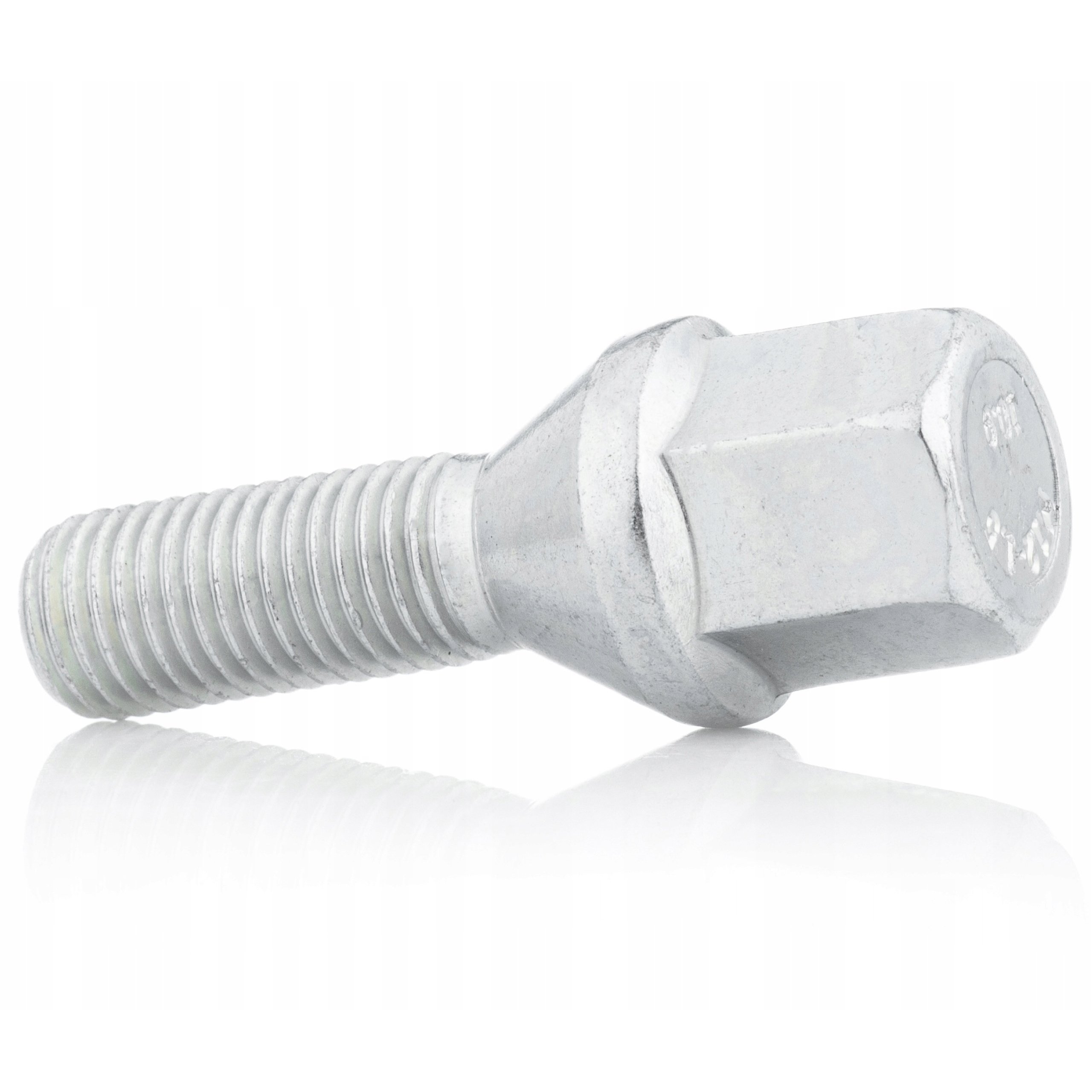

Wheel Bolt M14x1.25x28mm BMW MINI G1-B17U142528Z buy in the online store ADAPTEX-SHOP.EU
NOTE! Depending on the delivery, some cosmetic elements of the screw may vary. These changes do not affect the functionality of the screw.
Fits original rims:
BMW▾
1 Series F20, F21, F52, F40 (2011 - )
2 Series F22, F23, F44, F46, F87, G42, U06 (2013 - )
3 Series F30, F31, F34, F80, G20, G21, G80 (2011 - )
4 Series F32, F33, F36, F82, F83, G22, G23, G26, G82, G83 (2013 - )
5 Series F10, F11, F07, F90, G30, G31 (2009 - )
6 Series F06, F12, F13 (2011 - 2018)
7 Series F01, F02, F03, F04, G11, G12 (2008 - )
8 Series G14, G15, G16, F91, F92, F93 (2018 - )
X1 F48, F49 (2015 - )
X2 F39 (2017–present)
X3 F25, G01, F97 (2010 - )
X4 F26, G02, F98 (2014 - )
X5 E70, F15, G05, F85, F95 (2006 - )
X6 E71, F16, G06, F86, F96 (2008 - )
X7 G07 (2018 - )
Z4 G29 (2018–present)
i3 (2013 - 2022)
i4 (2021–)
iX (2021–)
iX3 (2020–present)
i8 (2014–2020)
MINI▾
Cabrio R57, F57 (2009 - )
Clubman R55, F54 (2007–present)
Convertible R57, F57 (2009–present)
Cooper R56, F55 (2006 - )
Countryman R60, F60 (2010 - )
Paceman R61 (2012 - 2016)
One R56, F56, F55 (2006 - )
The list assumes that the bolts will be mounted on original (standard) alloy wheels. If the bolts are to be mounted on non-standard wheels for this car, individual selection of parameters is required.
Due to the many unique configurations of vehicles and rims, this list cannot be 100% complete. Therefore, please ensure that the bolts fit your car and rims configuration.
If you have difficulty finding the right parameters, please contact us – we will help you professionally select the fasteners that fit your car.
Characteristics
Quantity in set: 1 pc.

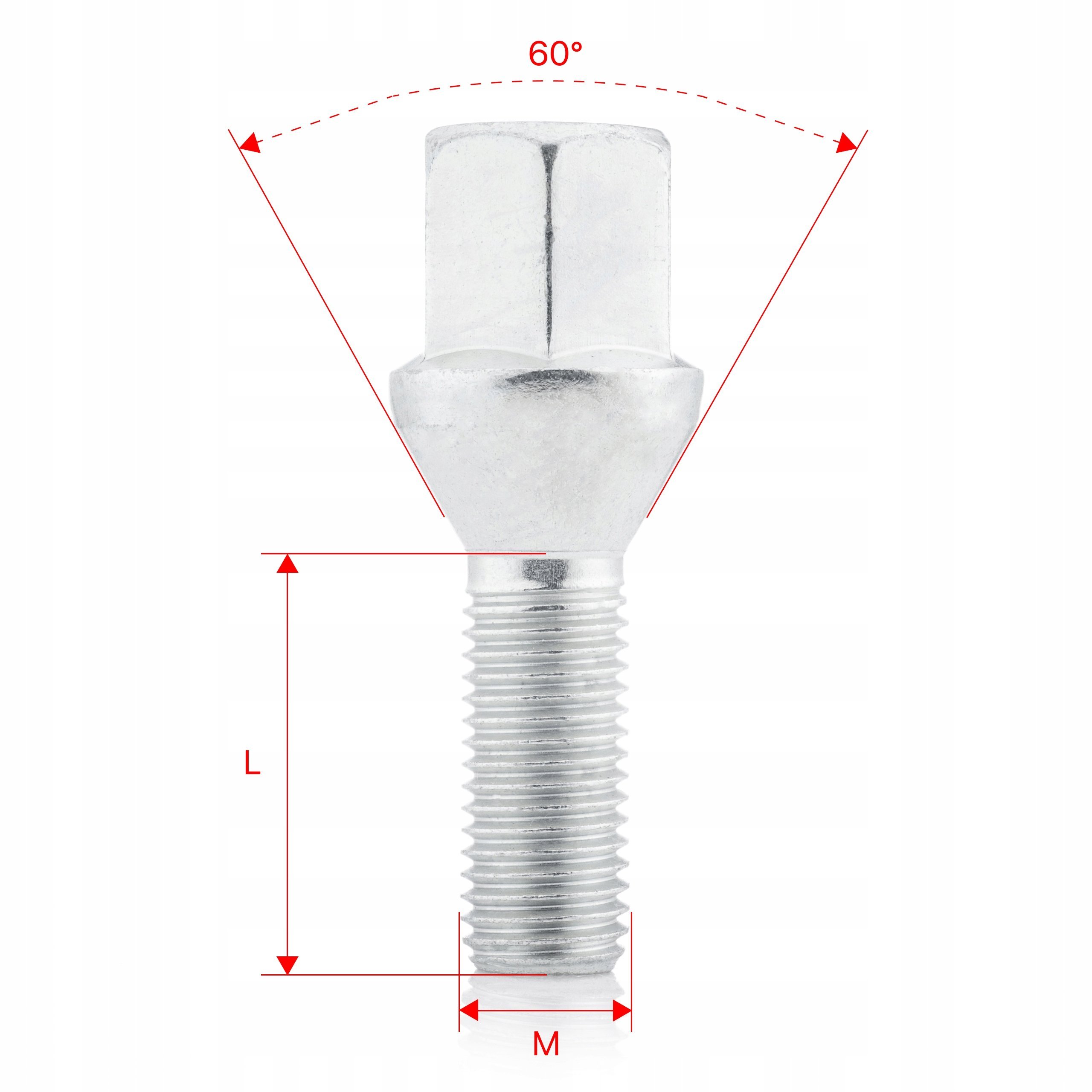

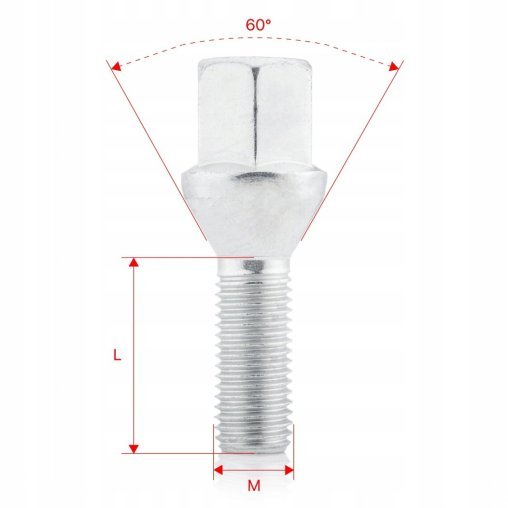

Dimensions:
- L – Working length (mm): 28
- M – Diameter: M14
- Thread pitch: 1.25
- Clamping surface: cone
- Key size (mm): 17
- Strength class: 10.9
- Coating: zinc plated
- Material: steel
- Colour: silver
OE: 36136774896, 36136781151
Note: In order to select the correct bolt length, refer to the working length (L) parameter, also known as the thread length. This parameter is always measured from the end of the cone, even if the working part is not threaded all the way to the seat.
DESCRIPTION
GETMANN fasteners are made of cold-formed steel. All forming stages are carried out using moulds manufactured in-house by GETMANN. After cold forming, the threads are created by rolling.
Thanks to subsequent heat treatment and a precise hardening process, GETMANN wheel bolts have a strength class of 10.9. After these processes are completed, a thorough quality control of the threads, structure, dimensions and shape is carried out.
In our shop, you will find only high-quality products that meet all the quality standards necessary for mounting spacers, which guarantees the safe operation of your car.
- Quantity
- 1 szt.
- Manufacturer
- GETMANN
- Category
- Wheel Bolts
- Working Length
- 28
- Thread
- M14x1.25
- Seat type
- Stożkowa
- Key
- 17
- Application
- Felgi Aluminiowe
- Strength Grade
- 10.9
- Kod Producenta
- G1-B17U142528Z
- Stan
- Nowy
- Typ samochodu
- Samochody Osobowe
