Wheel Bolt M12x1.5x28mm AUDI BMW CITROEN FIAT RENAULT VOLKSWAGEN VW G1-B17U125028Z buy in the online store ADAPTEX-SHOP.EU
NOTE! Depending on the delivery, some cosmetic elements of the screw may vary. These changes do not affect the screw's functionality.
Bolts require careful selection. Please read the offer carefully.
Fits original rims:
BMW▾
1 SeriesE87, E81, E82, E88 (2004 - 2013)
3 SeriesE21, E30 (1975 - 1994)
3 SeriesE36, E46, E90, E91, E92, E93 (1990 - 2013)
5 SeriesE12, E28, E34, E39, E60, E61 (1972 - 2010)
6 SeriesE24 (1976 - 1989)
6 SeriesE63, E64 (2003 - 2010)
7 SeriesE32, E38 (1986 - 2001)
8 SeriesE31 (1989 - 1999)
Alpina B10E34, E39 (1988 - 2003)
Alpina B11E32, E38 (1986–2001)
Alpina B12E32, E31, E38 (1986 - 2001)
Alpina B3E30 (1987–1994)
Alpina B3E36, E46, E90, E91, E92, E93 (1990 - 2013)
Alpina B5E60, E61 (2003 - 2010)
Alpina B6E30 (1987–1994)
Alpina B6E36, E63, E64 (1990 - 2010)
Alpina B8E36 (1990 - 2000)
Alpina D10E39 (1995 - 2003)
Alpina D3E90, E91, E92 (2005 - 2013)
Alpina RoadsterE52, E85 (2000 - 2008)
M CoupeE36 (1998 - 2002)
M RoadsterE36 (1998 - 2002)
M1E26 (1978 - 1981)
M3E30, E36, E46, E90, E92, E93 (1986 - 2013)
M5E28, E34, E39, E60, E61 (1984 - 2010)
M6E63, E64 (2005–2010)
X1E84 (2009 - 2015)
Z3E36 (1995 - 2002)
Z4E85, E86, E89 (2002 - 2016)
Z8E52 (2000 - 2003)
Fits non-original rims:
AUDI▾
80(1972 - 1986)
90(1984 - 1987)
100(1969 - 1991)
200(1969 - 1982)
Cabriolet(1991 - 2000)
Coupe81, 89 (1980 - 1996)
BMW▾
1 SeriesE87, E81, E82, E88 (2004 - 2013)
3 SeriesE21, E30, E36, E46, E90, E91, E92, E93 (1975 - 2013)
5 SeriesE12, E28, E34, E39, E60, E61 (1972 - 2010)
6 SeriesE24, E63, E64 (1976 - 2010)
7 SeriesE32, E38 (1986 - 2001)
8 SeriesE31 (1989 - 1999)
Alpina B3E30, E36, E46, E90, E91, E92, E93 (1987 - 2013)
Alpina B6E30, E36, E63, E64 (1987 - 2010)
M3E30, E36, E46, E90, E92, E93 (1986 - 2013)
M5E28, E34, E39, E60, E61 (1984 - 2010)
Z4E85, E86, E89 (2002 - 2016)
DAEWOO▾
KalosT200 (2002 - 2007)
LanosT100/T150 (1997 - 2008)
NexiaGM T (1995 - 2008)
CITROEN▾
C1PM, PN (2005 - 2014)
CHEVROLET▾
AstraF48 (1998 - 2011)
ChevyS10 (1994 - 2012)
Chevy PickupS10 (1999 - 2003)
MerivaMeriva A (2002 - 2012)
TigraTigra A (1998 - 1999)
TornadoTornado (2004 - 2021)
FIAT▾
Croma194 (2005 - 2010)
Grande Punto199 (2005 - 2009)
Punto Evo199 (2009 - 2012)
Punto 2013199 (2012 - 2018)
SediciFY (2005 - 2014)
RENAULT▾
CapturJ5 (2013 - 2021)
ClioB, IV (1990 - 2020)
MeganeI, III (1995 - 2021)
ScenicI, III (1999 - 2021)
DusterHS (2010 - )
Duster OrochHS (2015 - 2020)
SMART▾
ForfourW454, W453 (2004 - 2021)
FortwoW451, W453 (2007 - 2022)
VOLKSWAGEN▾
GolfA1-A3, 155, 1H (1974 - 2002)
PassatB1-B5, 35I (1973 - 1997)
Polo6N, 6KV (1975 - 2001)
Up!XZ (2011 - 2021)
The list assumes that the bolts will be mountedon original (standard) alloy wheels.If the bolts are to be mounted on non-standard wheels for this car, individual selection of parameters is required.
Due to the many unique configurations of vehicles and rims, this list cannot be 100% complete. Therefore, please ensure that the bolts fit your car and rims configuration.
If you have difficulty finding the right parameters, please contact us– we will help you professionally select the fasteners that fit your car.
Characteristics
Quantity in set: 1 pc.

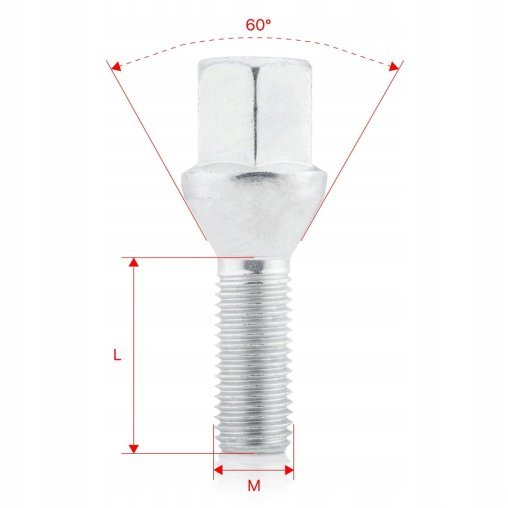

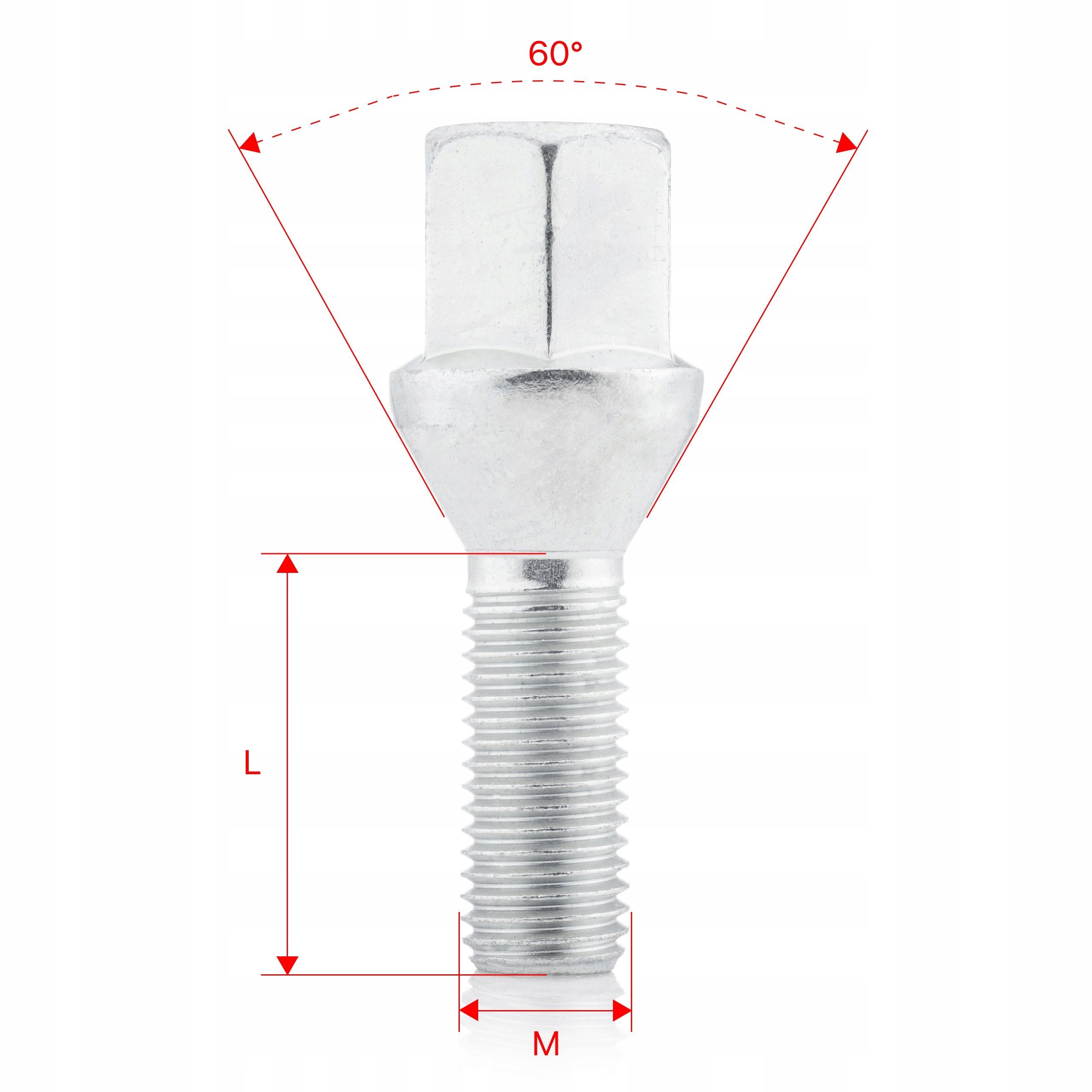

Dimensions:
- L – Thread length (mm): 28
- M – Diameter: M12
- Thread pitch: 1.5
- Mounting surface: Cone
- Key size (mm): 17
- Strength class: 10.9
- Coating: zinc plated
- Material: steel
Note: In order to select the correct bolt length, refer to the working length (L) parameter, also known as the thread length. This parameter is always measured from the end of the mounting surface, even if the working part is not threaded to the very end.
DESCRIPTION
GETMANNfasteners aremadeof cold-formed steel. All forming stages are carried out using moulds manufactured in-house byGETMANN. After cold forming, the threads are created by rolling.
Thanks to subsequent heat treatment and a precise hardening process,GETMANNwheel bolts have a strength class of 10.9. After these processes are completed, a thorough quality control of the threads, structure, dimensions and shape is carried out.
In our shop, you will find only high-quality products that meet all the quality standards necessary for the installation of spacers, which guarantees the safe operation of your car.
- Quantity
- 1 szt.
- Manufacturer
- GETMANN
- Category
- Wheel Bolts
- Working Length
- 28
- Thread
- M12x1.50
- Seat type
- Stożkowa
- Key
- 17
- Application
- Felgi Aluminiowe
- Strength Grade
- 10.9
- Kod Producenta
- G1-B17U125028Z
- Stan
- Nowy
- Typ samochodu
- Samochody Osobowe
