Fits:
Tesla
Model S
Model X
OEM: 5 196 786
Features
Manufacturer: Ellis

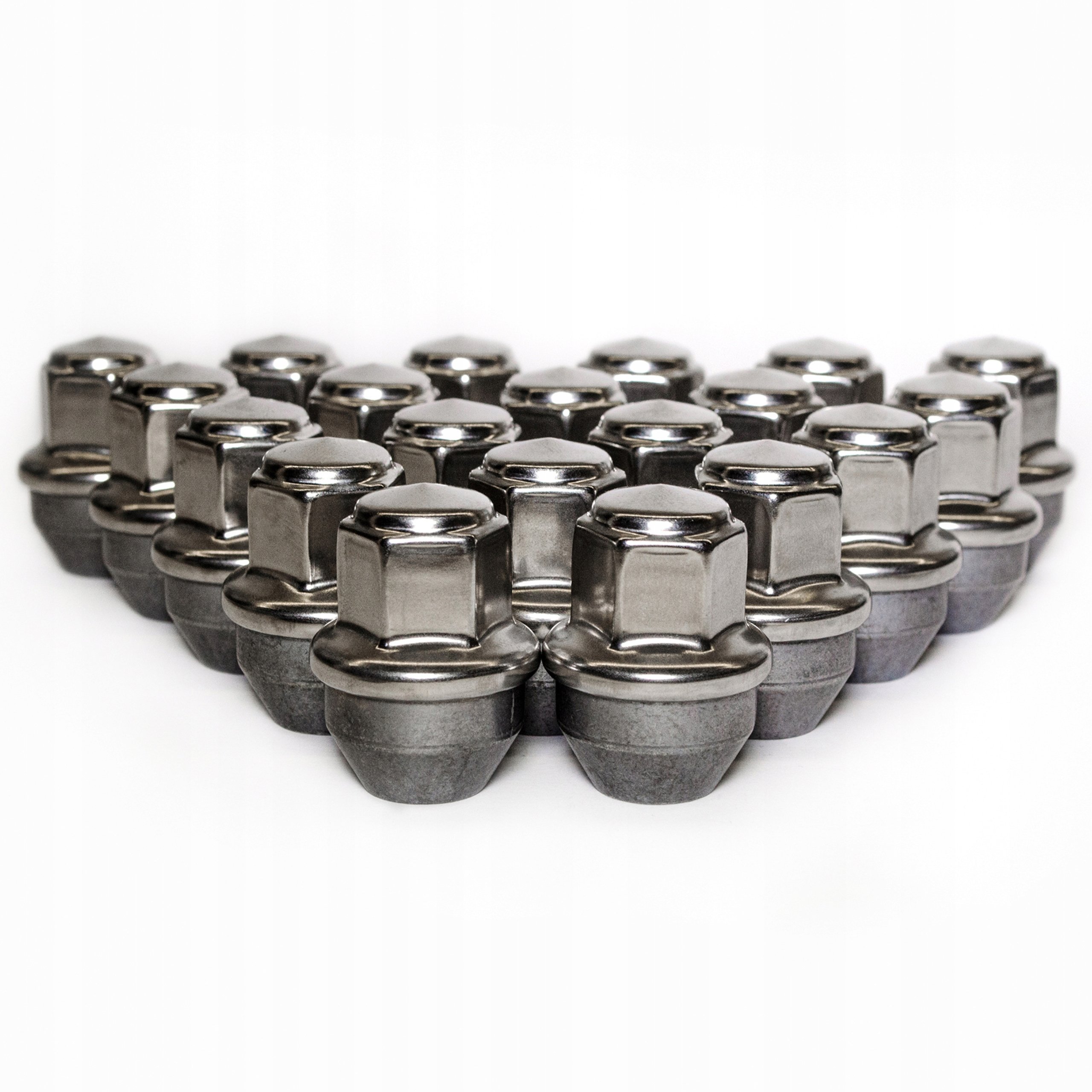

Quantity per set: 20 pcs.

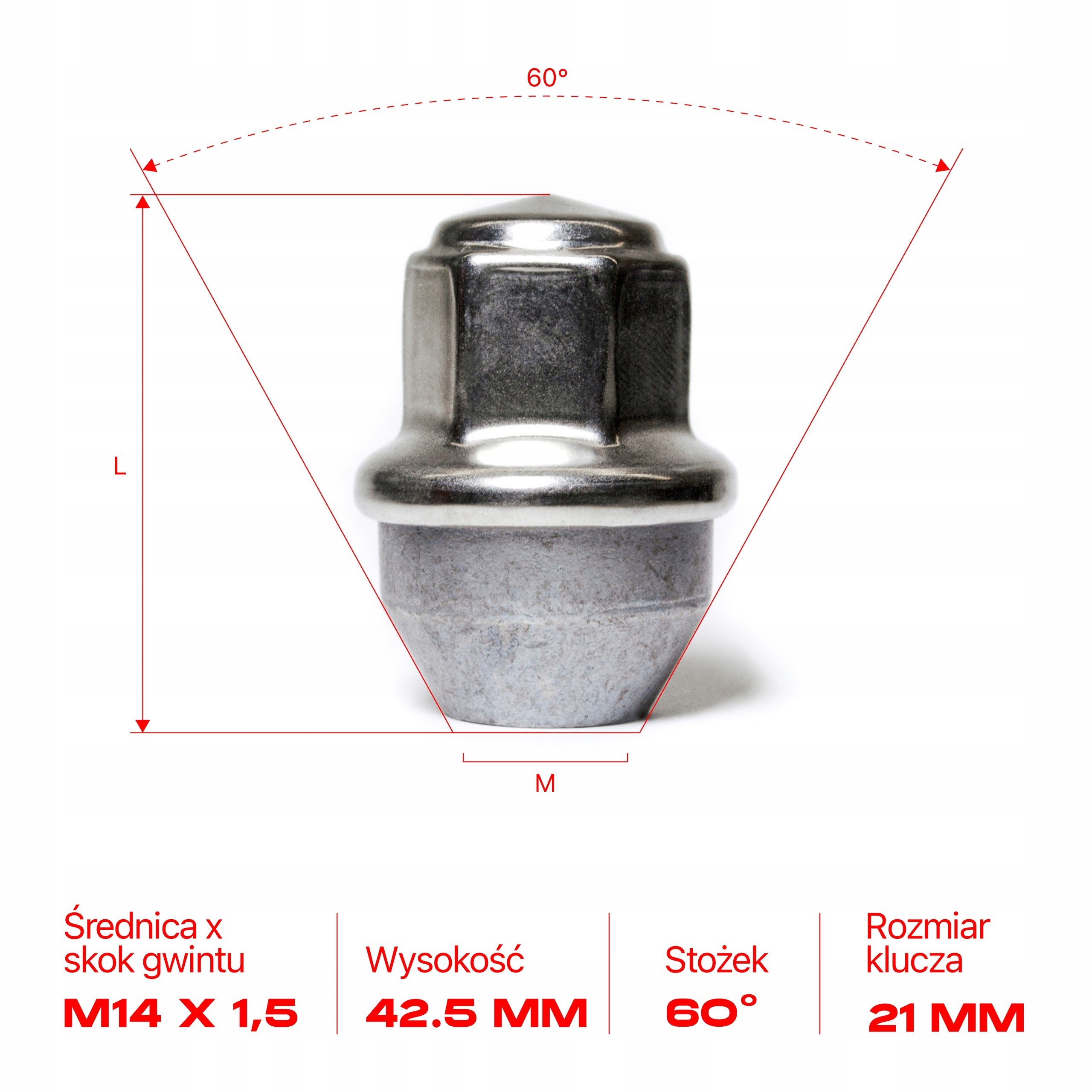

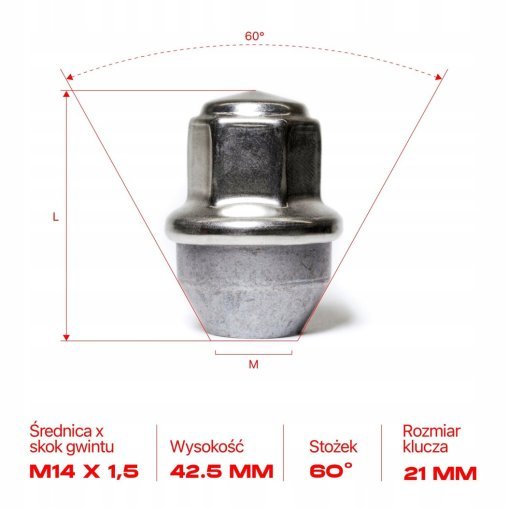

Dimensions:
- L - Nut height (mm): 42.5
- M - Diameter: M14
- Clamping surface: 60° cone
- Thread pitch: 1.5
- Key size (mm): 21
- Strength class: 10
- Nut type: closed
- Coating: zinc
- Material: steel
- Colour: grey
- Country of manufacturer: Italy
Application: for alloy wheels
M14x1.5x42.5mm wheel rim nuts are made from cold-formed steel. All forming stages are carried out using moulds produced in-house by Ellis. After cold forming, the threads are created by rolling.
Thanks to the subsequent heat treatment and the precise hardening process of the material, Ellis wheel rim nuts have a strength class of 10. After these processes, a thorough quality control of the threads, structure, dimensions and shape is carried out.
Ellis wheel rim accessories are manufactured in Italy in accordance with UNI EN ISO 9001:2015 management standards. Total control of the production line guarantees exceptional attention to detail at all stages of production.
Ellis rim nuts fit both factory and custom wheels. They can also be used to fit spacers.
