Wheel Spacers Hyundai Mazda Kia Mitsubishi 20MM 5x114.3 67.1 M12x1.5 20MM.8835 buy in the online store ADAPTEX-SHOP.EU

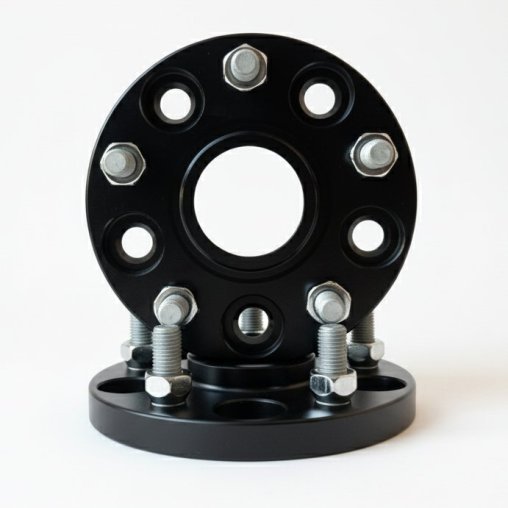

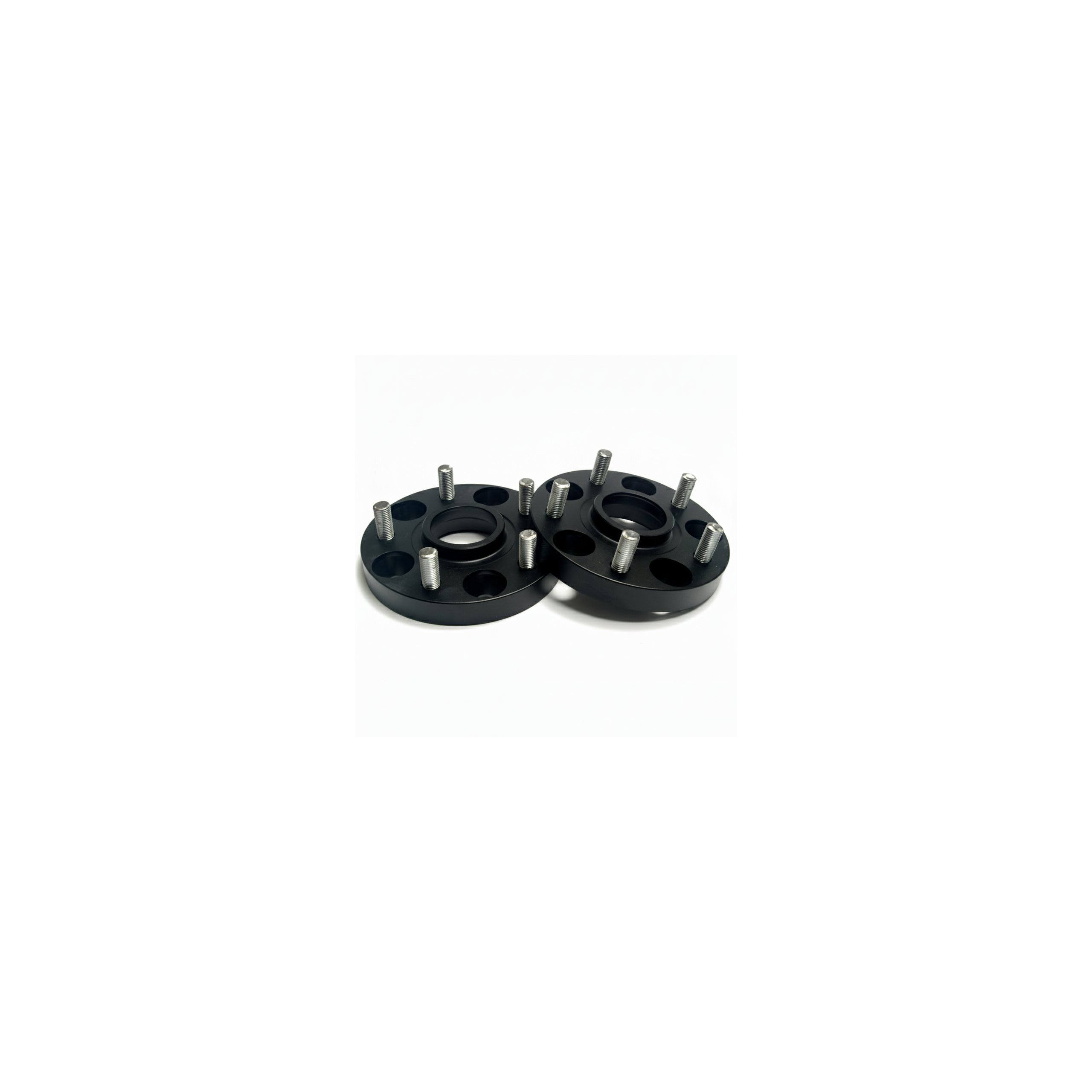

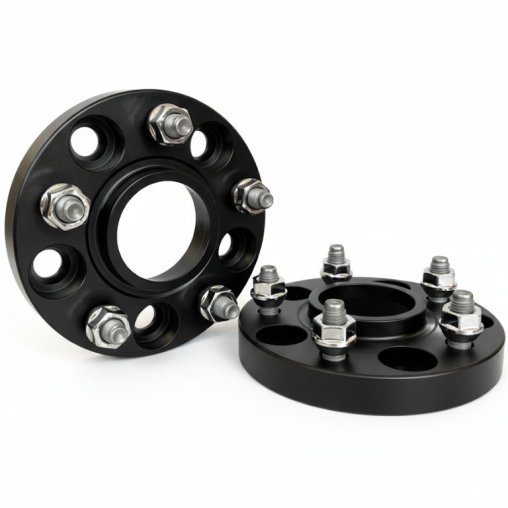

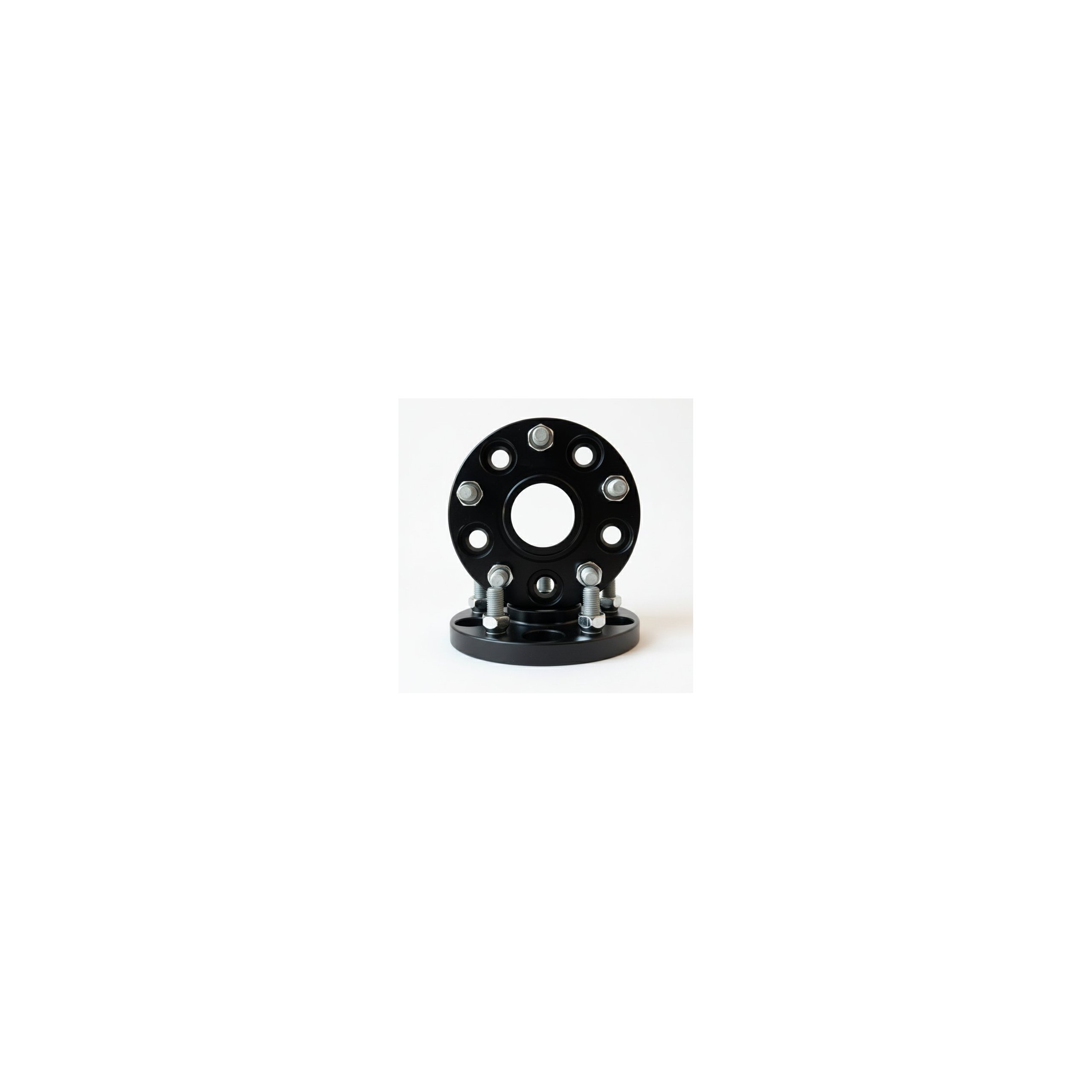

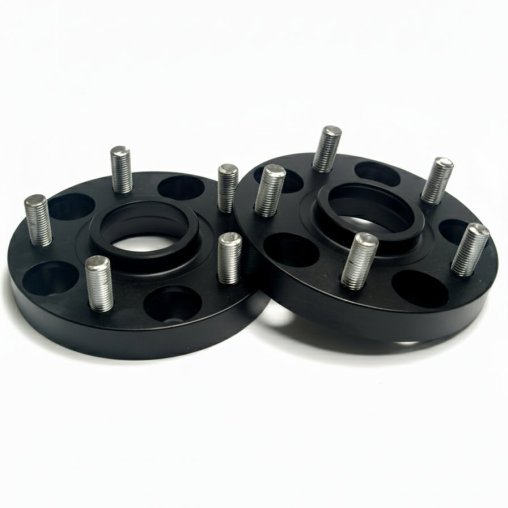

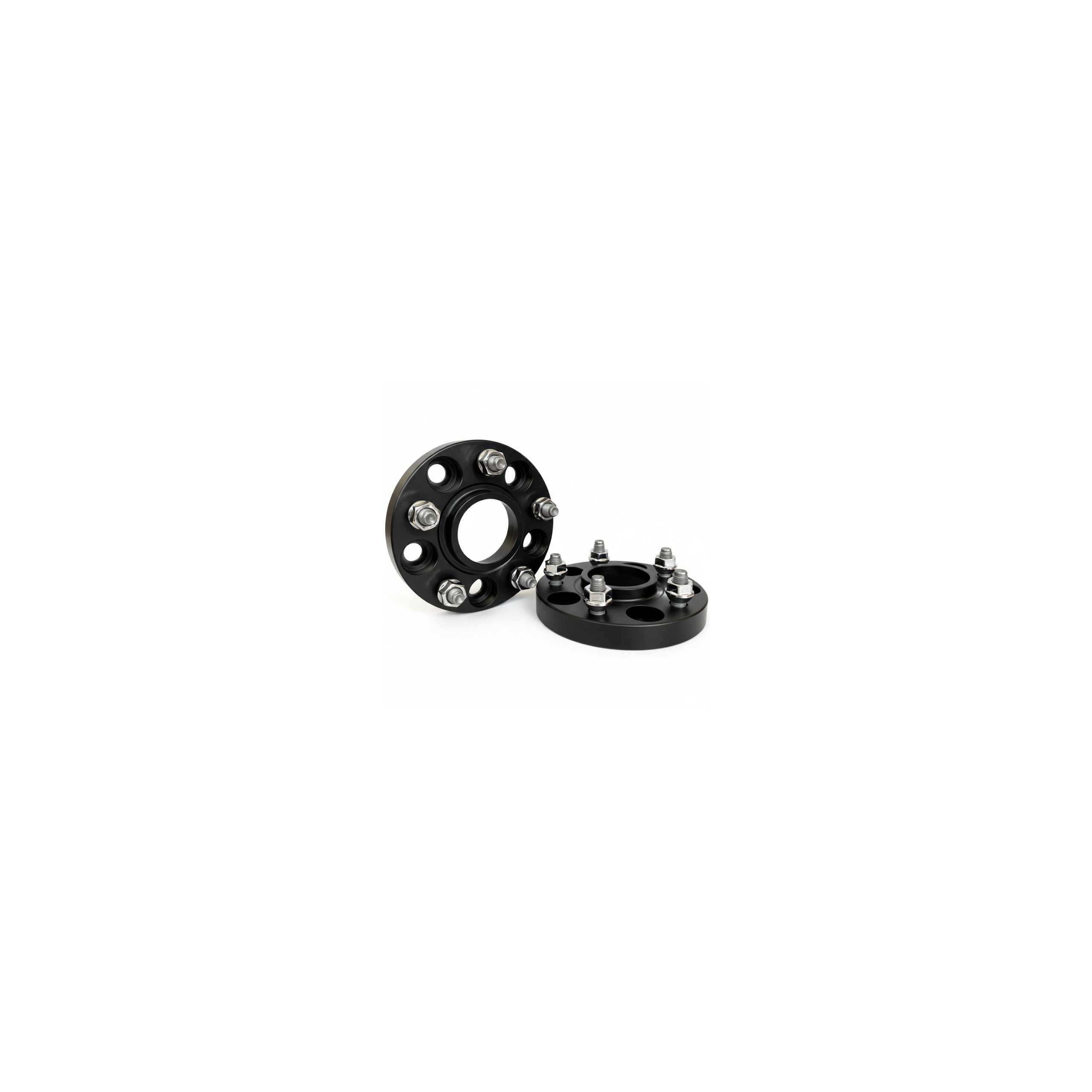

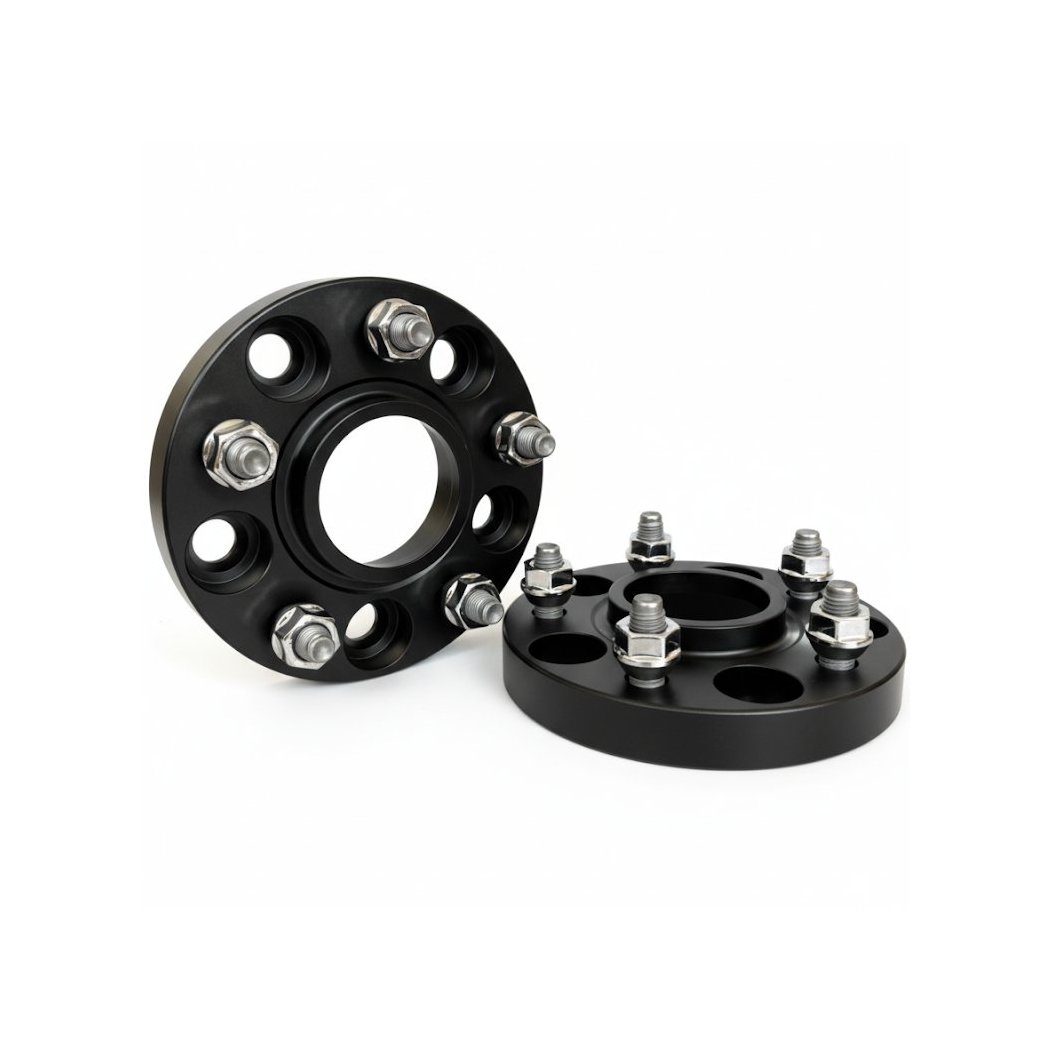

Bolt-on wheel spacers
Wheel spacers are the perfect solution for drivers who want to not only improve the appearance of their car, but also increase driving comfort and safety. Widening the wheelbase ensures a more stable driving line and more confident cornering, which translates into better vehicle handling.
Bolt-on spacers, mounted on pins, are a completely safe solution which, thanks to the use of two mounting planes, reduces the load on the bearings and suspension components. Importantly, their installation does not require replacing the factory pins in the hub with longer ones, thus avoiding costly and time-consuming modifications.
Bolt-on spacers with pins are attached to the car hub using adapter nuts, and the rim is attached to the spacer using standard nuts. The adapter nuts and studs in the spacers have the same thread as the nuts and studs in the car hub. This allows for safe and trouble-free installation without replacing standard fasteners.
Quantity in set: 2 pcs.
Special nuts included: 10 pcs.
Spacer type: bolt-on with pins
- Bolt pattern (PCD): 5x114.3
- Pin: M12 x 1.5
- Outer diameter: 150 mm
- Thickness (mm): 20
- Outer diameter (mm): 67.1
- Inner diameter (mm): 67.1
- Colour: matt black
- Material: aluminium
List of vehicles compatible with bolt-on spacers with 20mm pins 5x114.3 67.1 M12x1.5:
HYUNDAI
Elantra V, VI, VII (1996 - )
Sonata IV, V, VI, VII, VIII (1993 - )
Genesis BH, Coupe BH (2009 - 2015)
Veloster (2011 - )
Ioniq AE (2017–present)
Kona OS (2018–present)
Tucson NX4, TL (2004 - )
Santa Fe DM, TM (2013 - )
Tiburon GK (2003 - 2009)
XG XG300, XG350 (1998 - 2005)
Coupe GK (2002 - 2009)
Genesis Coupe BK (2008 - 2016)
i20 N BC3 (2021 - )
i30 FD, GD, PD, CN7 (2007–present)
i40 VF (2011 - 2019)
ix20 JC (2010 - 2020)
ix35 LM, NU (2009 - )
Veracruz EN (2006 - 2015)
KIA
EV6 CV (2022 - )
Forte (2014–present)
Soul (2009 - )
Sportage SL, JE/KM, QL, NQ5, NP (2004 - )
Optima MG, TF, JF (2006 - )
Sorento UM, XM, MQ4 (2002 - )
Stinger CK (2018 - )
Ceed CD (2018 - )
Cee'd ED, JD (2006 - 2018)
ProCeed CD (2019 - )
Pro_Cee'd ED, JD (2013 - 2018)
Venga YN (2009 - 2019)
MAZDA
626 (1993 - 2002)
CX-3 DK (2016 - 2021)
CX-30 F1 (2020 - )
Mazda3 BK, BL, BM/BN, BP (2004 - )
CX-5 KE, KF (2012 - )
CX-7 (2006–2012)
Mazda5 (2005 - 2015)
MX5 Miata NC, ND (2005 - )
RX-8 (2003 - 2011)
Mazda6 GG/GY, GH, GJ/GL (2002 - )
Millenia (1994 - 2002)
MX6 (1992 - 1997)
Protege BJ (1999 - 2004)
Tribute CD1/CD2 (2001 - 2011)
RX-7 FD (1992 - 2003)
Xedos 6 (1992–1999)
Xedos 9 (1993–2002)
MITSUBISHI
3000 GT (1991 - 1999)
Eclipse D2, D3, ST, GS, Spider ST (1990 - 2012)
Eclipse Cross (2017–present)
Lancer Evolution CN IV, CP V, CP VI, CT VII, CT VIII, CT IX, CA X (1995 - 2018)
Lancer IX CS (2003 - 2007)
Lancer X (2007–2017)
Grandis (2003 - 2010)
Outlander CU, CW (2003–present)
Outlander Sport (2010 - )
Pajero Pinin H7 (1998 - 2006)
Sigma FA (1990–1995)
Space Gear L400 (1995–2002)
Space Wagon UG (1998 - 2004)
ASX (2010 - )
PEUGEOT
4007 GS (2007–2012)
4008 GS, P84E (2012 - )
TOYOTA
Hilux (1986 - 2005)
CITROEN
C-Crosser GS (2007 - 2012)
DODGE
Caliber (2006 - 2012)
Note: Please indicate the model and year of manufacture of your car in the comments section of your order. This will allow us to additionally check whether the selected spacers will be compatible with it.
NOTE: During installation, please ensure that the car pins protruding from the spacers fit into the technical holes (special pockets) in the rims.
In addition, before installing the spacers, please insert them first into the hub and then into the rim. Check that there is no excessive play and that nothing interferes with the installation. This procedure is particularly necessary if the rims are not factory-made.
- Quantity
- 2 szt.
- Manufacturer
- REWIDER
- Category
- Wheel Spacers
- Thickness of a Single Spacer
- 20 mm
- Color
- Czarny
- Center Bore (mm)
- 67,1
- PCD
- 5x114.3
- Outer Diameter
- 150
- Kod Producenta
- 20MM.8835
- Stan
- Nowy
- Typ samochodu
- Samochody Osobowe
